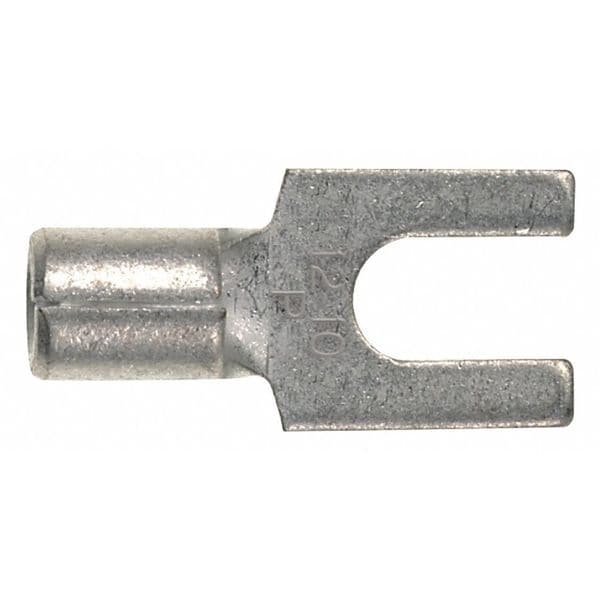

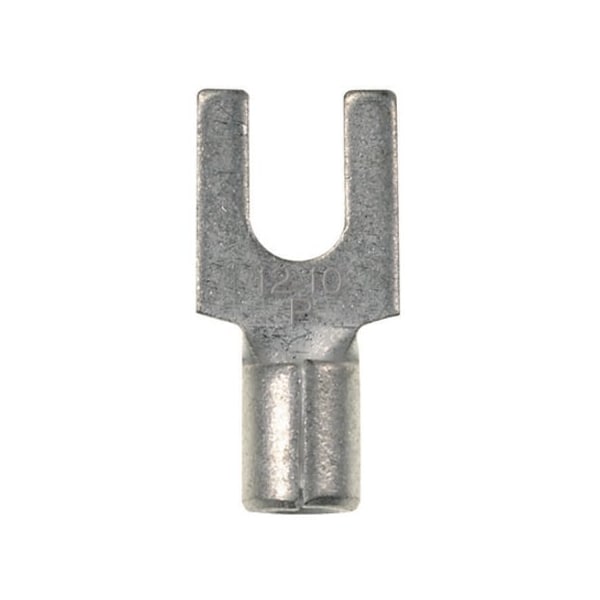

Terminal de horquilla no aislado para alambre calibre 18-14, con tornillo de #8, paquete de 1000 unidades.
| Wire Range | 18 to 14 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #8 |
| Insulation Color | Bare |
| Tongue Width - Wire Connector | 0.31 in |
| Overall Length | 0.69 in |
| Max. Temp. | 302 deg F |
| Connection Type | Crimp |
| Max. Voltage | 2,000 V |
| Standards | UL 587-H, UL Listed |
| Terminal Connection | Crimp |
| Terminal Type | Standard |
| Features | Barrel of Terminal Internally Beveled to Provide, Fork Design Provides for Fast and Easy Installation, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Without The Need to Remove Fastener |
| Seam | Brazed |
| Connection Material | Copper |
| Item | Fork Terminal |
| Tongue Width | 0.31 in |
| Compatible Manufacturer Model Number | CT-100A, CT-1570, CT-160, CT-1701 (P10), CT-200, CT-2500 (CT-2570CH), CT-260, CT-600-A (CT-570CH) |
| Termination Style | Crimp |
| Special Features | Barrel of Terminal Internally Beveled to Provide, Fork Design Provides for Fast and Easy Installation, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Maximum Operating Temperature | 302 deg F |
| Terminal Shape | Fork |
| Maximum Wire Size | 14 AWG |
| Tongue Length | 0.00 - 0.50 inches |
| Seam Style | Brazed |
| Compatible with Product Type | Crimper, Crimp Tool, Wire Stripper |
| Insulation Coverage | None |
| Compatible with Series | CT |
| Strip Length | 1/4 in |
| Barrel Length | 0.27 in |
| Minimum Wire Size | 18 AWG |
| Maximum Voltage | 2,000 V |
| Contact Finish | Tin |
| Tongue Thickness | 0.03 in |
| Insulation Material | None |
| Contact Material | Copper |
| Package Quantity | 1000 |
