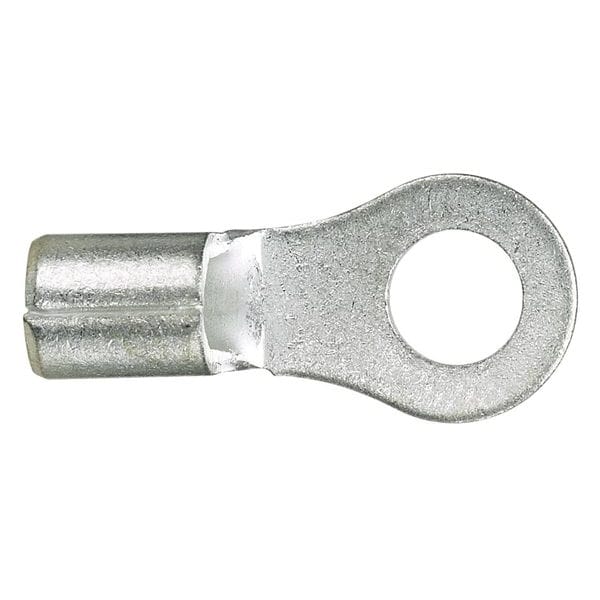

Terminal anillo sin aislamiento de calibre 18-14, con tornillo #6, paquete de 1000 unidades.
| Wire Range | 18 to 14 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #6 |
| Insulation Color | Bare |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B |
| Seam | Brazed |
| Green Environmental Attribute | Does Not Contain PVC |
| Max. Temp. | 302 deg F |
| Terminal Connection | Crimp |
| Connection Material | Copper |
| Connection Type | Crimp |
| Item | Ring Terminal |
| Overall Length | 0.62 in |
| Max. Voltage | 2,000 V |
| Tongue Width - Wire Connector | 0.62 in |
| Tongue Width | 1/4 in |
| Barrel Inside Diameter | 0.09 in |
| Minimum Wire Size | 18 AWG |
| Compatible Manufacturer Model Number | CT-100, CT-100A, CT-1570, CT-160, CT-200, CT-2500, CT-260, CT-570, CT-600-A |
| Termination Style | Crimp |
| Tongue Thickness | 0.03 in |
| Maximum Wire Size | 14 AWG |
| Maximum Operating Temperature | 302 deg F |
| Special Features | Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Insulation Material | None |
| Barrel Style | Serrated Barrel |
| Contact Finish | Tin |
| Insulation Coverage | None |
| Strip Length | 1/4 in |
| Maximum Voltage | 2,000 V |
| Terminal Shape | Ring Terminal |
| Hole Diameter | 0.15 in |
| Contact Material | Copper |
| Barrel Outside Diameter | 0.09 in |
| Minimum Operating Temperature | 302 deg F |
| Seam Style | Brazed |
| Barrel Length | 1/4 in |
| Package Quantity | 1000 |
