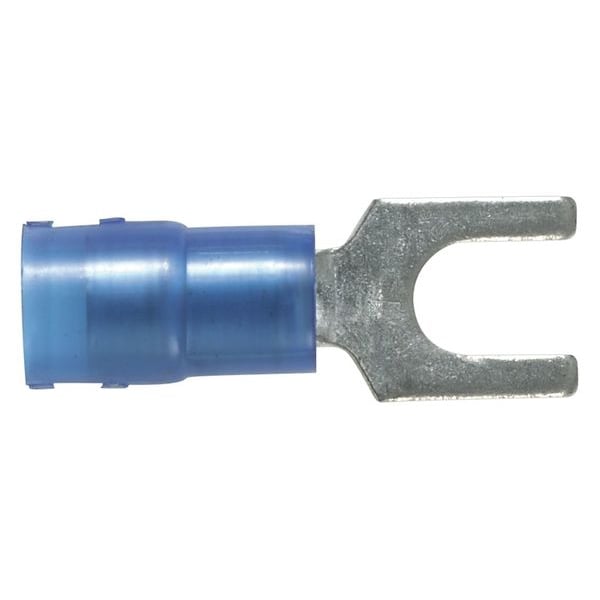

Terminal de horquilla de nylon para calibres 18-14 con perno de tamaño #10. Paquete con 100 piezas.
| Wire Range | 18 to 14 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #10 |
| Insulation Color | Blue |
| Max. Temp. | 221 deg F |
| Terminal Type | Standard |
| Tongue Width - Wire Connector | 0.34 in |
| Seam | Grip Sleeved |
| Connection Type | Crimp |
| Overall Length | 0.87 in |
| Features | Barrel of Terminal Internally Beveled to Provide, Fork Design Provides for Fast and Easy Installation, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Without The Need to Remove Fastener |
| Standards | CSA Certified, UL Listed |
| Connection Material | Copper |
| Item | Fork Terminal |
| Max. Voltage | 600 V |
| Terminal Connection | Crimp |
| Compatible with Series | CT |
| Compatible Manufacturer Model Number | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Insulation Material | Nylon |
| Barrel Style | Insulation Grip |
| Maximum Operating Temperature | 221 deg F |
| Special Features | Fork Design Provides for Fast and Easy Installation Without the Need to Remove Fastener, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications |
| Seam Style | Butted |
| Maximum Wire Size | 14 AWG |
| Strip Length | 1/4 in |
| Contact Finish | Tin |
| Tongue Length | 0.00 - 0.50 inches |
| Tongue Thickness | 0.03 in |
| Tongue Width | 0.34 in |
| Compatible with Product Type | Crimper, Crimp Tool, Micro Crimp |
| Contact Material | Copper |
| Barrel Length | 0.44 in |
| UL 94 Flammability Rating | HB |
| Maximum Voltage | 600 V |
| Termination Style | Crimp |
| Terminal Shape | Fork |
| Minimum Wire Size | 18 AWG |
| Insulation Dia | 0.162 in |
| Maximum Copper Conductor Size (AWG) | #14 |
| Product Type | Fork Terminal |
| Seam Type | Butted |
| Color Code | Blue |
| Overall Width (In.) | 0.34 |
| Sub Brand | Pan-Term® |
| Minimum Wire Size (AWG) | #18 |
| Finish/Coating | Tin-Plated |
| Maximum Wire Insulation Diameter (In.) | 0.162 |
| Overall Length (mm) | 22.1 |
| Barrel Length (mm) | 11 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Wire Strip Length (mm) | 5.6 |
| Tongue Length (In.) | 0.44 |
| Barrel Type | Grip Sleeve |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Voltage (kV) | 0.6 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Wire Strip Length (In.) | 11,871 |
| Stud Hole Size (In.) | #10 |
| Maximum Wire Insulation Diameter (mm) | 4.11 |
| Tongue Width (mm) | 8.6 |
| Tongue Length (mm) | 11 |
| Stud Hole Size (mm) | 5 |
| Overall Length (In.) | 0.87 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Tongue Width (In.) | 0.34 |
| Fork Type | Standard |
| Minimum Metric Conductor Size (mm²) | 1 |
| Minimum Copper Conductor Size (AWG SOL) | #18 |
| Barrel Length (In.) | 0.44 |
| Overall Width (mm) | 8.64 |
| Packaging Type | Bottle |
| Flammability Rating | UL94-HB |
| Tongue Thickness (mm) | 0.8 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG STR) | #18 |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Tongue Thickness (In.) | 0.03 |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Maximum Operating Temperature (°C) | 105 |
| Package Quantity | 100 |
