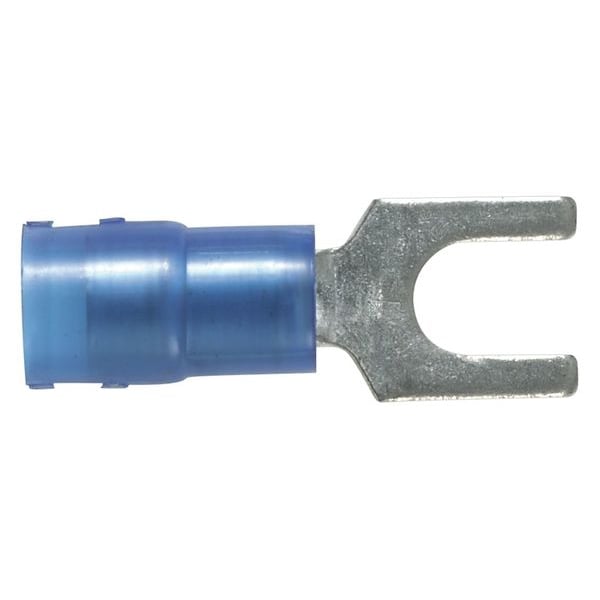

18-14 AWG Nylon Fork Terminal 1/4" Stud PK100
| Wire Range | 18 to 14 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | 1/4 in |
| Insulation Color | Blue |
| Overall Length | 1.02 in |
| Seam | Grip Sleeved |
| Features | Barrel of Terminal Internally Beveled to Provide, Fork Design Provides for Fast and Easy Installation, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Without The Need to Remove Fastener |
| Item | Fork Terminal |
| Max. Voltage | 600 V |
| Terminal Connection | Crimp |
| Terminal Type | Standard |
| Connection Type | Crimp |
| Standards | CSA Certified, UL 587-H, UL Listed |
| Tongue Width - Wire Connector | 0.44 in |
| Max. Temp. | 221 deg F |
| Connection Material | Copper |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Width | 0.4 in |
| Length | 1 in |
| Tongue Width | 0.44 in |
| Tongue Thickness | 0.03 in |
| Maximum Voltage | 600 V |
| Termination Style | Crimp |
| Barrel Style | Insulation Grip |
| Special Features | Fork Design Provides for Fast and Easy Installation Without the Need to Remove Fastener, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications |
| Compatible with Product Type | Crimp Tool |
| Compatible Manufacturer Model Number | CT-1550, CT-1551, CT-400, CT-460, CT-500, CT-550 |
| Contact Material | Copper |
| Barrel Length | 0.51 in |
| Tongue Length | 0.51 - 1.00 inches |
| Terminal Shape | Fork |
| Strip Length | 1/4 in |
| Insulation Material | Nylon |
| Maximum Wire Size | 14 AWG |
| Seam Style | Grip Sleeved |
| Maximum Operating Temperature | 221 deg F |
| Minimum Wire Size | 18 AWG |
| Compatible with Series | CT |
| Insulation Dia | 0.162 in |
| Product Type | Terminal Connector |
| Product Material | Nylon |
| Connector Type | Fork Terminal |
| Environmentally Friendly | Yes |
| Product Name | Terminal Connector |
| Product Color | Blue |
| Connector Plating | Tin |
| Diameter | 0.2" |
| Connector Details | 1 x (Fork Terminal) |
| Wire Strip Length (In.) | 11,871 |
| Minimum Copper Conductor Size (AWG STR) | #18 |
| Barrel Length (In.) | 0.51 |
| Maximum Operating Temperature (°C) | 105 |
| Seam Type | Butted |
| Minimum Metric Conductor Size (mm²) | 1 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Overall Width (mm) | 11.2 |
| Tongue Thickness (mm) | 0.8 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Minimum Wire Size (AWG) | #18 |
| Sub Brand | Pan-Term® |
| Tongue Width (In.) | 0.44 |
| Tongue Thickness (In.) | 0.03 |
| Maximum Voltage (kV) | 0.6 |
| Maximum Wire Insulation Diameter (mm) | 4.11 |
| Maximum Wire Size (AWG) | #14 |
| Packaging Type | Bottle |
| Maximum Operating Temperature (°F) | 221 |
| Fork Type | Standard |
| Overall Length (In.) | 1.02 |
| Barrel Length (mm) | 13 |
| Minimum Copper Conductor Size (AWG SOL) | #18 |
| Barrel Type | Grip Sleeve |
| Minimum Copper Conductor Size (AWG) | #18 |
| Flammability Rating | UL94-HB |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Color Code | Blue |
| Stud Hole Size (mm) | 6 |
| Stud Hole Size (In.) | 1/4" |
| Overall Length (mm) | 25.9 |
| Overall Width (In.) | 0.44 |
| Finish/Coating | Tin-Plated |
| Tongue Length (In.) | 0.51 |
| Wire Strip Length (mm) | 5.6 |
| Tongue Length (mm) | 13 |
| Base Material | Copper |
| Tongue Width (mm) | 11.2 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Voltage (V) | 600 |
| Maximum Wire Insulation Diameter (In.) | 0.162 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Operating Temperature (°C) | 105 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Package Quantity | 100 |
