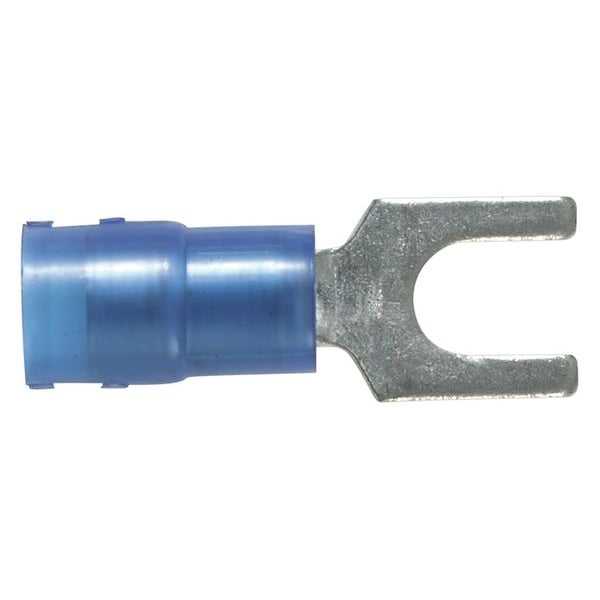

Terminal de horquilla de nylon para calibres 18-14, con tapa para tornillo #6. Paquete con 100 piezas.
| Wire Range | 18 to 14 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #6 |
| Insulation Color | Blue |
| Connection Material | Copper |
| Item | Fork Terminal |
| Max. Voltage | 600 V |
| Terminal Type | Standard |
| Max. Temp. | 221 deg F |
| Seam | Grip Sleeved |
| Features | Barrel of Terminal Internally Beveled to Provide, Fork Design Provides for Fast and Easy Installation, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Without The Need to Remove Fastener |
| Tongue Width - Wire Connector | 0.28 in |
| Standards | CSA Certified, UL Listed |
| Overall Length | 0.79 in |
| Connection Type | Crimp |
| Terminal Connection | Crimp |
| Material | Copper, Nylon |
| Length | 0.8 in |
| Width | 0.3 in |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Special Features | Fork Design Provides for Fast and Easy Installation Without the Need to Remove Fastener, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications |
| UL 94 Flammability Rating | HB |
| Terminal Shape | Fork |
| Maximum Operating Temperature | 221 deg F |
| Compatible with Series | CT |
| Contact Material | Copper |
| Strip Length | 1/4 in |
| Compatible Manufacturer Model Number | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Barrel Style | Insulation Grip |
| Tongue Thickness | 0.03 in |
| Insulation Material | Nylon |
| Tongue Width | 0.28 in |
| Maximum Voltage | 600 V |
| Barrel Length | 0.4 in |
| Compatible with Product Type | Crimper, Crimp Tool, Micro Crimp |
| Termination Style | Crimp |
| Maximum Wire Size | 14 AWG |
| Seam Style | Butted |
| Contact Finish | Tin |
| Tongue Length | 0.00 - 0.50 inches |
| Minimum Wire Size | 18 AWG |
| Insulation Dia | 0.162 in |
| Product Material | Nylon |
| Product Type | Terminal Connector |
| Product Name | Terminal Connector |
| Connector Details | 1 x (Fork Terminal) |
| Diameter | 0.2" |
| Product Color | Blue |
| Connector Type | Fork Terminal |
| Connector Plating | Tin |
| Environmentally Friendly | Yes |
| Barrel Length (mm) | 10 |
| Overall Length (In.) | 0.79 |
| Tongue Length (In.) | 0.4 |
| Barrel Type | Grip Sleeve |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Overall Width (mm) | 7.11 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
| Tongue Length (mm) | 10 |
| Overall Length (mm) | 20.07 |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Voltage (kV) | 0.6 |
| Wire Strip Length (mm) | 5.6 |
| Fork Type | Standard |
| Minimum Copper Conductor Size (AWG SOL) | #18 |
| Wire Strip Length (In.) | 11,871 |
| Flammability Rating | UL94-HB |
| Seam Type | Butted |
| Tongue Width (In.) | 0.28 |
| Maximum Operating Temperature (°C) | 105 |
| Base Material | Copper |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Wire Size (AWG) | #18 |
| Tongue Width (mm) | 7.1 |
| Maximum Wire Insulation Diameter (mm) | 4.11 |
| Stud Hole Size (In.) | #6 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Finish/Coating | Tin-Plated |
| Sub Brand | Pan-Term® |
| Maximum Voltage (V) | 600 |
| Maximum Wire Insulation Diameter (In.) | 0.162 |
| Minimum Copper Conductor Size (AWG STR) | #18 |
| Overall Width (In.) | 0.28 |
| Barrel Length (In.) | 0.4 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Stud Hole Size (mm) | 3.5 |
| Packaging Type | Bottle |
| Maximum Wire Size (AWG) | #14 |
| Color Code | Blue |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Package Quantity | 100 |
