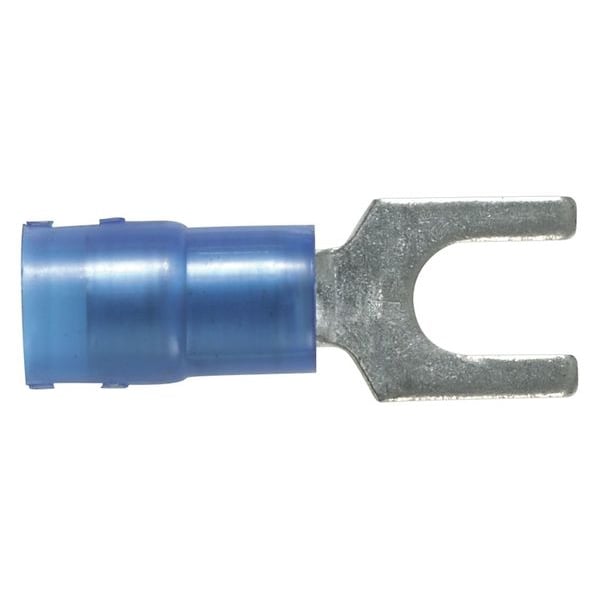

Terminales de horquilla de nylon para cable de calibres 18-14 con tornillo #8, paquete con 100 piezas.
| Wire Range | 18 to 14 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #8 |
| Insulation Color | Blue |
| Tongue Width - Wire Connector | 0.31 in |
| Terminal Connection | Crimp |
| Connection Material | Copper |
| Overall Length | 0.85 in |
| Max. Temp. | 221 deg F |
| Item | Fork Terminal |
| Max. Voltage | 600 V |
| Terminal Type | Standard |
| Standards | CSA Certified, UL Listed |
| Connection Type | Crimp |
| Seam | Grip Sleeved |
| Features | Barrel of Terminal Internally Beveled to Provide, Fork Design Provides for Fast and Easy Installation, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Without The Need to Remove Fastener |
| Material | Copper, Nylon |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Width | 0.3 in |
| Length | 0.9 in |
| Compatible with Series | CT |
| Barrel Length | 0.43 in |
| Tongue Length | 0.00 - 0.50 inches |
| Tongue Thickness | 0.03 in |
| Strip Length | 1/4 in |
| Contact Material | Copper |
| Terminal Shape | Fork |
| Maximum Voltage | 600 V |
| Termination Style | Crimp |
| Seam Style | Butted |
| Compatible with Product Type | Crimper, Crimp Tool, Micro Crimp |
| UL 94 Flammability Rating | HB |
| Insulation Material | Nylon |
| Maximum Operating Temperature | 221 deg F |
| Minimum Wire Size | 18 AWG |
| Tongue Width | 0.31 in |
| Barrel Style | Insulation Grip |
| Contact Finish | Tin |
| Maximum Wire Size | 14 AWG |
| Special Features | Fork Design Provides for Fast and Easy Installation Without the Need to Remove Fastener, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications |
| Compatible Manufacturer Model Number | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Insulation Dia | 0.162 in |
| Connector Details | 1 x (Fork Terminal) |
| Product Name | Terminal Connector |
| Product Color | Blue |
| Connector Plating | Tin |
| Connector Type | Fork Terminal |
| Product Type | Terminal Connector |
| Environmentally Friendly | Yes |
| Product Material | Nylon |
| Diameter | 0.2" |
| Minimum Wire Size (AWG) | #18 |
| Tongue Length (In.) | 0.43 |
| Maximum Operating Temperature (°C) | 105 |
| Overall Length (mm) | 21.59 |
| Wire Strip Length (mm) | 5.6 |
| Tongue Length (mm) | 10.8 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Tongue Thickness (In.) | 0.03 |
| Barrel Length (In.) | 0.43 |
| Overall Width (In.) | 0.31 |
| Seam Type | Butted |
| Tongue Thickness (mm) | 0.8 |
| Base Material | Copper |
| Minimum Copper Conductor Size (AWG SOL) | #18 |
| Overall Width (mm) | 7.87 |
| Flammability Rating | UL94-HB |
| Maximum Voltage (V) | 600 |
| Wire Strip Length (In.) | 11,871 |
| Maximum Wire Insulation Diameter (mm) | 4.11 |
| Color Code | Blue |
| Sub Brand | Pan-Term® |
| Minimum Copper Conductor Size (AWG STR) | #18 |
| Fork Type | Standard |
| Stud Hole Size (In.) | #8 |
| Barrel Length (mm) | 10.8 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Barrel Type | Grip Sleeve |
| Maximum Wire Insulation Diameter (In.) | 0.162 |
| Tongue Width (mm) | 7.9 |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (mm) | 4 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Voltage (kV) | 0.6 |
| Tongue Width (In.) | 0.31 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Packaging Type | Bottle |
| Maximum Wire Size (AWG) | #14 |
| Overall Length (In.) | 0.85 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Package Quantity | 100 |
