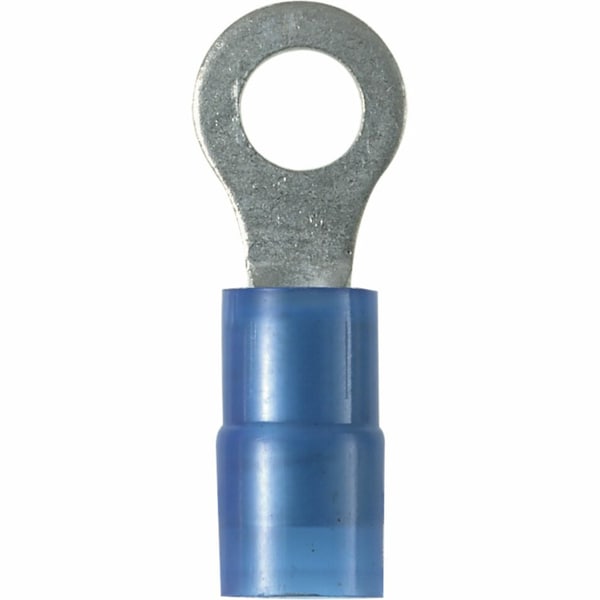

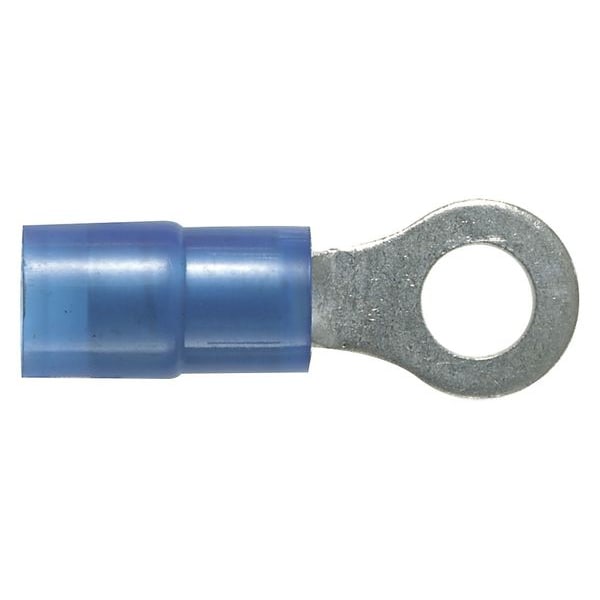

18-14 AWG Nylon Ring Terminal #10 Stud PK100
| Wire Range | 18 to 14 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #10 |
| Insulation Color | Blue |
| Overall Length | 0.85 in |
| Terminal Connection | Crimp |
| Max. Voltage | 600 V |
| Tongue Width - Wire Connector | 0.31 in |
| Max. Temp. | 221 deg F |
| Seam | Grip Sleeved |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B |
| Connection Type | Crimp |
| Connection Material | Copper |
| Green Environmental Attribute | Does Not Contain PVC |
| Item | Ring Terminal |
| Terminal Type | Ring Tongue |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Length | 0.9 in |
| Width | 0.3 in |
| Compatible Manufacturer Model Number | CT-100, CT-1550, CT-1551, CT-2300/ST, CT-2500/L, UP14ZLW |
| Hole Diameter | 0.2 in |
| Insulation Coverage | Partial Coverage |
| Strip Length | 1/4 in |
| Barrel Style | Insulation Grip |
| Tongue Width | 0.31 in |
| Termination Style | Crimp |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| UL 94 Flammability Rating | HB |
| Minimum Operating Temperature | 221 deg F |
| Seam Style | Grip Sleeved |
| Insulation Material | Nylon |
| Contact Material | Copper |
| Terminal Shape | Ring Terminal |
| Barrel Inside Diameter | 0.16 in |
| Maximum Operating Temperature | 221 deg F |
| Maximum Wire Size | 14 AWG |
| Maximum Voltage | 600 V |
| Minimum Wire Size | 18 AWG |
| Tongue Thickness | 0.03 in |
| Contact Finish | Tin |
| Insulation Dia | 0.16 in |
| Product Name | PN Terminal Connector |
| Environmentally Friendly | Yes |
| Connector Plating | Tin |
| Connector Details | 1 x (Ring Terminal) |
| Product Series | PN |
| Connector Type | Ring Terminal |
| Product Color | Blue |
| Product Type | Terminal Connector |
| Product Material | Copper |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-108) |
| Maximum Voltage (V) | 600 |
| Maximum Wire Insulation Diameter (In.) | 0.16 |
| Tongue Width (In.) | 0.31 |
| Flammability Rating | UL94-HB |
| Tongue Width (mm) | 7.9 |
| Maximum Wire Insulation Diameter (mm) | 4.1 |
| Barrel Type | Grip Sleeve |
| Maximum Copper Conductor Size (AWG) | #14 |
| Overall Length (mm) | 21.6 |
| Maximum Voltage (kV) | 0.6 |
| Overall Width (In.) | 0.31 |
| Overall Length (In.) | 0.85 |
| Tongue Thickness (mm) | 0.8 |
| Base Material | Copper |
| Maximum Operating Temperature (°C) | 105 |
| Packaging Type | Bottle |
| Wire Strip Length (mm) | 5.6 |
| Overall Width (mm) | 7.9 |
| Stud Hole Size (In.) | #10 |
| Stud Hole Size (mm) | 5 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Wire Size (AWG) | #18 |
| Sub Brand | Pan-Term® |
| Color Code | Blue |
| Maximum Operating Temperature (°F) | 221 |
| Tongue Thickness (In.) | 0.03 |
| Finish/Coating | Tin-Plated |
| Wire Strip Length (In.) | 11,871 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Maximum Wire Size (AWG) | #14 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Operating Temperature (°C) | 105 |
| Package Quantity | 100 |
