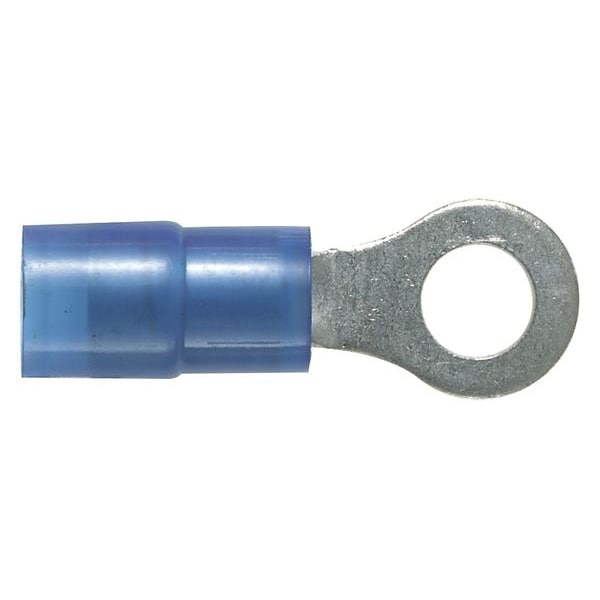

Terminal de anillo de nylon 18-14 AWG, con espiga #10, paquete con 1000 piezas.
| Wire Range | 18 to 14 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #10 |
| Insulation Color | Blue |
| Seam | Grip Sleeved |
| Connection Type | Crimp |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B |
| Item | Ring Terminal |
| Connection Material | Copper |
| Overall Length | 0.85 in |
| Tongue Width - Wire Connector | 0.31 in |
| Max. Temp. | 221 deg F |
| Terminal Connection | Crimp |
| Green Environmental Attribute | Does Not Contain PVC |
| Max. Voltage | 600 V |
| Features | Flame Retardant |
| Terminal Type | Ring Tongue |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Length | 0.9 in |
| Width | 0.3 in |
| Contact Finish | Tin |
| Compatible Manufacturer Model Number | CT-100, CT-1550, CT-1551, CT-2300/ST, CT-2500/L, UP14ZLW |
| Hole Diameter | 0.2 in |
| Insulation Material | Nylon |
| Tongue Width | 0.31 in |
| Contact Material | Copper |
| Tongue Thickness | 0.03 in |
| Maximum Operating Temperature | 221 deg F |
| Seam Style | Grip Sleeved |
| Termination Style | Crimp |
| UL 94 Flammability Rating | HB |
| Barrel Inside Diameter | 0.16 in |
| Terminal Shape | Ring Terminal |
| Strip Length | 1/4 in |
| Maximum Wire Size | 14 AWG |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Maximum Voltage | 600 V |
| Barrel Style | Insulation Grip |
| Insulation Coverage | Partial Coverage |
| Minimum Wire Size | 18 AWG |
| Minimum Operating Temperature | 221 deg F |
| Insulation Dia | 0.16 in |
| Connector Plating | Tin |
| Product Type | Terminal Connector |
| Connector Details | 1 x (Ring Terminal) |
| Connector Type | Ring Terminal |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Environmentally Friendly | Yes |
| Product Color | Blue |
| Package Type | Bulk |
| Maximum Operating Temperature (°C) | 105 |
| Stud Hole Size (mm) | 5 |
| Overall Width (In.) | 0.31 |
| Base Material | Copper |
| Maximum Wire Insulation Diameter (In.) | 0.16 |
| Stud Hole Size (In.) | #10 |
| Flammability Rating | UL94-HB |
| Maximum Voltage (kV) | 0.6 |
| Tongue Width (mm) | 7.9 |
| Maximum Voltage (V) | 600 |
| Color Code | Blue |
| Overall Width (mm) | 7.9 |
| Tongue Width (In.) | 0.31 |
| Tongue Thickness (mm) | 0.8 |
| Maximum Wire Insulation Diameter (mm) | 4.1 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Wire Strip Length (In.) | 11,871 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Pan-Term® |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Wire Strip Length (mm) | 5.6 |
| Overall Length (In.) | 0.85 |
| Finish/Coating | Tin-Plated |
| Minimum Wire Size (AWG) | #18 |
| Barrel Type | Grip Sleeve |
| Packaging Type | Box |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-108) |
| Tongue Thickness (In.) | 0.03 |
| Overall Length (mm) | 21.6 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Package Quantity | 1000 |
