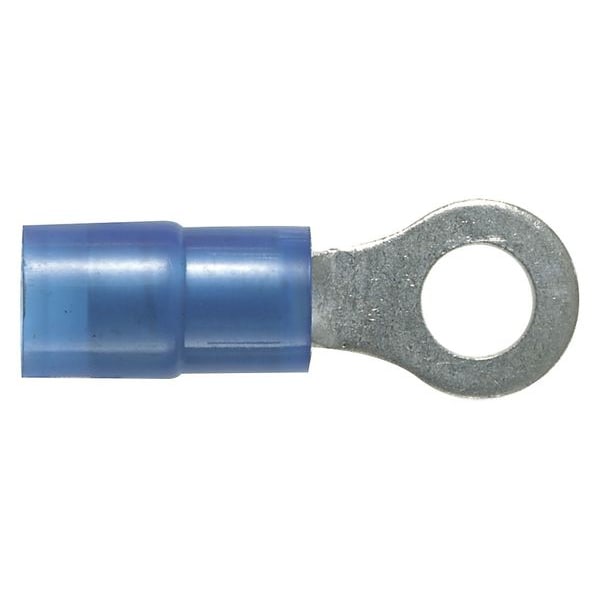

18-14 AWG Nylon Ring Terminal 1/4" Stud PK100
| Wire Range | 18 to 14 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | 1/4 in |
| Insulation Color | Blue |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B |
| Connection Material | Copper |
| Terminal Connection | Crimp |
| Item | Ring Terminal |
| Seam | Grip Sleeved |
| Max. Temp. | 221 deg F |
| Connection Type | Crimp |
| Tongue Width - Wire Connector | 0.46 in |
| Overall Length | 1.05 in |
| Max. Voltage | 600 V |
| Green Environmental Attribute | Does Not Contain PVC |
| Terminal Type | Ring Tongue |
| Features | Flame Retardant |
| Length | 1.1 in |
| Width | 1/2 in |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Minimum Wire Size | 18 AWG |
| Strip Length | 1/4 in |
| Termination Style | Crimp |
| Contact Finish | Tin |
| Hole Diameter | 0.27 in |
| Maximum Operating Temperature | 221 deg F |
| Insulation Material | Nylon |
| Barrel Style | Insulation Grip |
| UL 94 Flammability Rating | HB |
| Minimum Operating Temperature | 221 deg F |
| Contact Material | Copper |
| Tongue Thickness | 0.03 in |
| Terminal Shape | Ring Terminal |
| Tongue Width | 0.46 in |
| Insulation Coverage | Partial Coverage |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Maximum Wire Size | 14 AWG |
| Barrel Inside Diameter | 0.16 in |
| Seam Style | Grip Sleeved |
| Maximum Voltage | 600 V |
| Insulation Dia | 0.16 in |
| Product Material | Copper |
| Connector Plating | Tin |
| Connector Type | Ring Terminal |
| Environmentally Friendly | Yes |
| Connector Details | 1 x (Ring Terminal) |
| Product Color | Blue |
| Product Name | Terminal Connector |
| Product Type | Terminal Connector |
| Stud Hole Size (mm) | 6 |
| Overall Length (mm) | 26.7 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Tongue Thickness (In.) | 0.03 |
| Color Code | Blue |
| Sub Brand | Pan-Term® |
| Wire Strip Length (mm) | 5.6 |
| Packaging Type | Bottle |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Insulation Diameter (In.) | 0.16 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-154) |
| Tongue Thickness (mm) | 0.8 |
| Overall Width (mm) | 11.7 |
| Maximum Wire Size (AWG) | #14 |
| Overall Length (In.) | 1.05 |
| Maximum Operating Temperature (°C) | 105 |
| Base Material | Copper |
| Tongue Width (In.) | 0.46 |
| Wire Strip Length (In.) | 11,871 |
| Finish/Coating | Tin-Plated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Maximum Voltage (V) | 600 |
| Maximum Wire Insulation Diameter (mm) | 4.1 |
| Minimum Wire Size (AWG) | #18 |
| Barrel Type | Grip Sleeve |
| Maximum Operating Temperature (°F) | 221 |
| Overall Width (In.) | 0.46 |
| Flammability Rating | UL94-HB |
| Stud Hole Size (In.) | 1/4" |
| Maximum Voltage (kV) | 0.6 |
| Tongue Width (mm) | 11.7 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Operating Temperature (°C) | 105 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Package Quantity | 100 |
