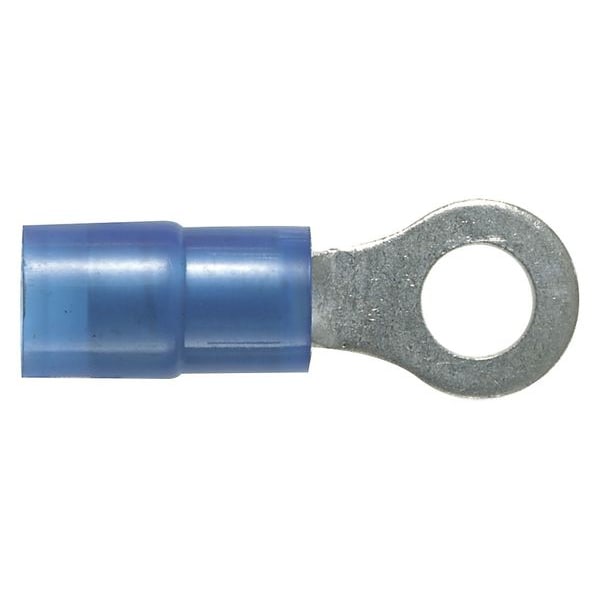

18-14 AWG Nylon Ring Terminal 1/4" Stud PK1000
| Wire Range | 18 to 14 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | 1/4 in |
| Insulation Color | Blue |
| Max. Voltage | 600 V |
| Max. Temp. | 221 deg F |
| Tongue Width - Wire Connector | 0.46 in |
| Overall Length | 1.05 in |
| Green Environmental Attribute | Does Not Contain PVC |
| Connection Material | Copper |
| Terminal Connection | Crimp |
| Seam | Grip Sleeved |
| Item | Ring Terminal |
| Connection Type | Crimp |
| Standards | CSA Certified LR31212, UL Listed 587H E52164 |
| Tongue Width | 0.46 in |
| UL 94 Flammability Rating | HB, V-2 |
| Tongue Length | 0.53 in |
| Minimum Operating Temperature | 221 deg F |
| Contact Finish | Tin |
| Tongue Thickness | 0.03 in |
| Maximum Wire Size | 14 AWG |
| Compatible Manufacturer Model Number | CT-1550, CT-1551, CT-400, CT-460, CT-550 |
| Barrel Style | Insulation Grip |
| Insulation Material | Nylon |
| Terminal Shape | Ring Terminal |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Hole Diameter | 0.27 in |
| Minimum Wire Size | 18 AWG |
| Strip Length | 1/4 in |
| Maximum Voltage | 600 V |
| Barrel Length | 0.52 in |
| Maximum Operating Temperature | 221 deg F |
| Seam Style | Grip Sleeved |
| Insulation Coverage | Partial Coverage |
| Contact Material | Copper |
| Termination Style | Crimp |
| Barrel Inside Diameter | 0.16 in |
| Package Quantity | 1000 |
