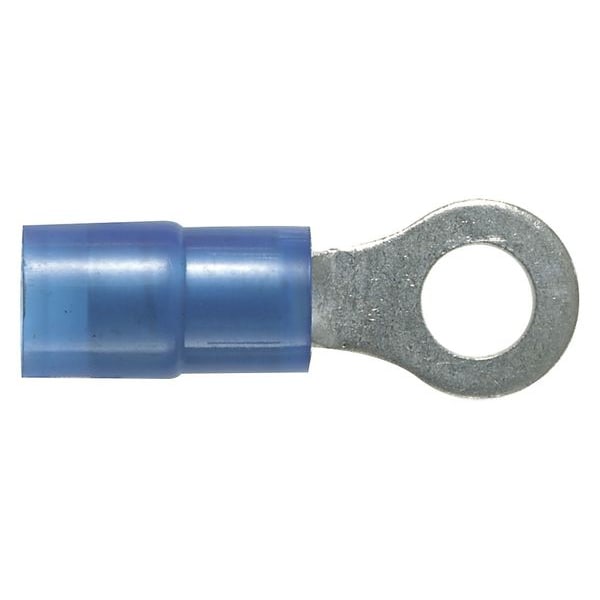

Terminal de anillo de nylon de calibre 18-14 con perno #6, paquete de 1000 unidades.
| Wire Range | 18 to 14 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #6 |
| Insulation Color | Blue |
| Item | Ring Terminal |
| Green Environmental Attribute | Does Not Contain PVC |
| Seam | Grip Sleeved |
| Connection Material | Copper |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B |
| Tongue Width - Wire Connector | 0.31 in |
| Terminal Connection | Crimp |
| Max. Temp. | 221 deg F |
| Overall Length | 0.85 in |
| Max. Voltage | 600 V |
| Connection Type | Crimp |
| Barrel Style | Insulation Grip |
| Insulation Coverage | Partial Coverage |
| Termination Style | Crimp |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Seam Style | Grip Sleeved |
| Contact Material | Copper |
| Maximum Operating Temperature | 221 deg F |
| Barrel Inside Diameter | 0.16 in |
| Contact Finish | Tin |
| Maximum Wire Size | 14 AWG |
| Terminal Shape | Ring Terminal |
| Minimum Operating Temperature | 221 deg F |
| Minimum Wire Size | 18 AWG |
| Hole Diameter | 0.15 in |
| UL 94 Flammability Rating | HB |
| Tongue Width | 0.31 in |
| Compatible Manufacturer Model Number | CT-100, CT-1550, CT-1551, CT-2300/ST, CT-2500/L, UP14ZLW |
| Maximum Voltage | 600 V |
| Insulation Material | Nylon |
| Tongue Thickness | 0.03 in |
| Strip Length | 1/4 in |
| Package Quantity | 1000 |
