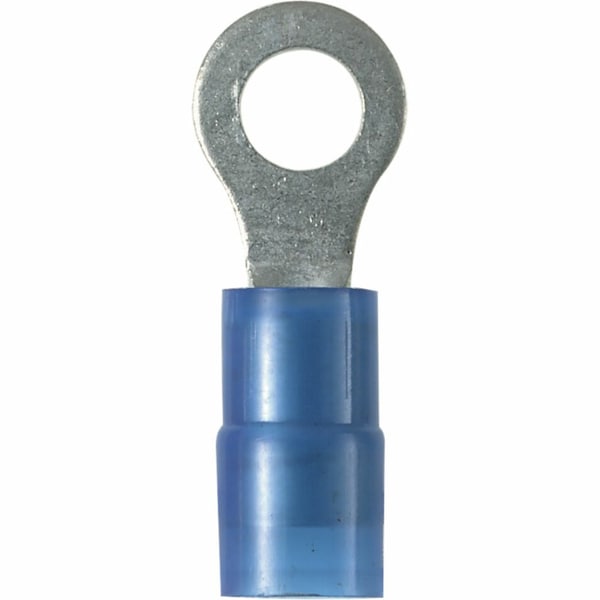

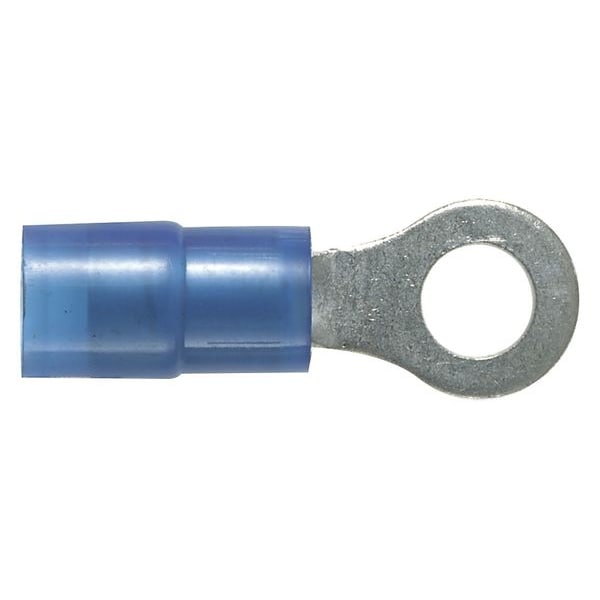

Terminal de anillo de nailon de calibre 18-14 con un tornillo de calibre #8 empaque con 100 piezas.
| Wire Range | 18 to 14 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #8 |
| Insulation Color | Blue |
| Terminal Connection | Crimp |
| Overall Length | 0.85 in |
| Max. Voltage | 600 V |
| Green Environmental Attribute | Does Not Contain PVC |
| Tongue Width - Wire Connector | 0.31 in |
| Seam | Grip Sleeved |
| Max. Temp. | 221 deg F |
| Item | Ring Terminal |
| Connection Type | Crimp |
| Connection Material | Copper |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B |
| Terminal Type | Ring Tongue |
| Length | 0.9 in |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Width | 0.3 in |
| Maximum Operating Temperature | 221 deg F |
| Hole Diameter | 0.17 in |
| Maximum Voltage | 600 V |
| Seam Style | Grip Sleeved |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Insulation Material | Nylon |
| Maximum Wire Size | 14 AWG |
| Barrel Style | Insulation Grip |
| Termination Style | Crimp |
| Strip Length | 1/4 in |
| Contact Material | Copper |
| Tongue Width | 0.31 in |
| Compatible Manufacturer Model Number | CT-100, CT-1550, CT-1551, CT-2300/ST, CT-2500/L, UP14ZLW |
| Minimum Wire Size | 18 AWG |
| Tongue Thickness | 0.03 in |
| UL 94 Flammability Rating | HB |
| Terminal Shape | Ring Terminal |
| Barrel Inside Diameter | 0.16 in |
| Insulation Coverage | Partial Coverage |
| Minimum Operating Temperature | 221 deg F |
| Contact Finish | Tin |
| Insulation Dia | 0.16 in |
| Connector Details | 1 x (Ring Terminal) |
| Connector Plating | Tin |
| Product Material | Copper |
| Product Color | Blue |
| Environmentally Friendly | Yes |
| Product Series | PN |
| Product Type | Terminal Connector |
| Connector Type | Ring Terminal |
| Product Name | Terminal Connector |
| Maximum Operating Temperature (°F) | 221 |
| Barrel Type | Grip Sleeve |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Voltage (kV) | 0.6 |
| Minimum Wire Size (AWG) | #18 |
| Overall Length (mm) | 21.6 |
| Maximum Wire Insulation Diameter (mm) | 4.1 |
| Tongue Width (mm) | 7.9 |
| Overall Width (In.) | 0.31 |
| Finish/Coating | Tin-Plated |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Maximum Voltage (V) | 600 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-153) |
| Tongue Thickness (mm) | 0.8 |
| Tongue Thickness (In.) | 0.03 |
| Tongue Width (In.) | 0.31 |
| Base Material | Copper |
| Minimum Metric Conductor Size (mm²) | 1 |
| Stud Hole Size (mm) | 4 |
| Maximum Wire Size (AWG) | #14 |
| Packaging Type | Bottle |
| Wire Strip Length (mm) | 5.6 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Color Code | Blue |
| Flammability Rating | UL94-HB |
| Stud Hole Size (In.) | #8 |
| Maximum Wire Insulation Diameter (In.) | 0.16 |
| Sub Brand | Pan-Term® |
| Wire Strip Length (In.) | 11,871 |
| Overall Width (mm) | 7.9 |
| Overall Length (In.) | 0.85 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Package Quantity | 100 |
