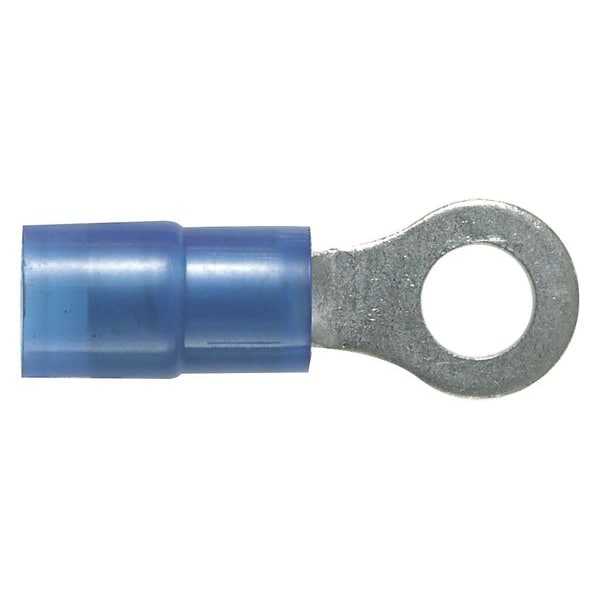

Terminal anular de nylon de calibre 18-14, para tornillo de calibre #8, paquete con 1000 piezas.
| Wire Range | 18 to 14 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #8 |
| Insulation Color | Blue |
| Overall Length | 0.85 in |
| Green Environmental Attribute | Does Not Contain PVC |
| Max. Temp. | 221 deg F |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B |
| Seam | Grip Sleeved |
| Connection Type | Crimp |
| Connection Material | Copper |
| Item | Ring Terminal |
| Max. Voltage | 600 V |
| Tongue Width - Wire Connector | 0.31 in |
| Terminal Connection | Crimp |
| Terminal Type | Ring Tongue |
| Features | Flame Retardant |
| Width | 0.3 in |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Length | 0.9 in |
| Compatible Manufacturer Model Number | CT-100, CT-1550, CT-1551, CT-2300/ST, CT-2500/L, UP14ZLW |
| Tongue Width | 0.31 in |
| Tongue Thickness | 0.03 in |
| Maximum Wire Size | 14 AWG |
| Barrel Inside Diameter | 0.16 in |
| Termination Style | Crimp |
| Contact Finish | Tin |
| UL 94 Flammability Rating | HB |
| Seam Style | Grip Sleeved |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Strip Length | 1/4 in |
| Maximum Operating Temperature | 221 deg F |
| Insulation Coverage | Partial Coverage |
| Hole Diameter | 0.17 in |
| Terminal Shape | Ring Terminal |
| Maximum Voltage | 600 V |
| Minimum Wire Size | 18 AWG |
| Barrel Style | Insulation Grip |
| Contact Material | Copper |
| Insulation Material | Nylon |
| Minimum Operating Temperature | 221 deg F |
| Insulation Dia | 0.16 in |
| Connector Plating | Tin |
| Product Color | Blue |
| Product Type | Terminal Connector |
| Package Type | Bulk |
| Product Name | Terminal Connector |
| Environmentally Friendly | Yes |
| Connector Details | 1 x (Ring Terminal) |
| Product Material | Copper |
| Connector Type | Ring Terminal |
| Tongue Width (mm) | 7.9 |
| Stud Hole Size (In.) | #8 |
| Packaging Type | Box |
| Maximum Voltage (V) | 600 |
| Maximum Operating Temperature (°C) | 105 |
| Tongue Thickness (In.) | 0.03 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Minimum Wire Size (AWG) | #18 |
| Maximum Wire Insulation Diameter (In.) | 0.16 |
| Maximum Wire Size (AWG) | #14 |
| Wire Strip Length (mm) | 5.6 |
| Overall Length (mm) | 21.6 |
| Finish/Coating | Tin-Plated |
| Overall Width (mm) | 7.9 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Sub Brand | Pan-Term® |
| Overall Length (In.) | 0.85 |
| Maximum Wire Insulation Diameter (mm) | 4.1 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Tongue Thickness (mm) | 0.8 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Color Code | Blue |
| Maximum Voltage (kV) | 0.6 |
| Stud Hole Size (mm) | 4 |
| Base Material | Copper |
| Overall Width (In.) | 0.31 |
| Maximum Operating Temperature (°F) | 221 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-153) |
| Barrel Type | Grip Sleeve |
| Tongue Width (In.) | 0.31 |
| Flammability Rating | UL94-HB |
| Wire Strip Length (In.) | 11,871 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Operating Temperature (°C) | 105 |
| Package Quantity | 1000 |
