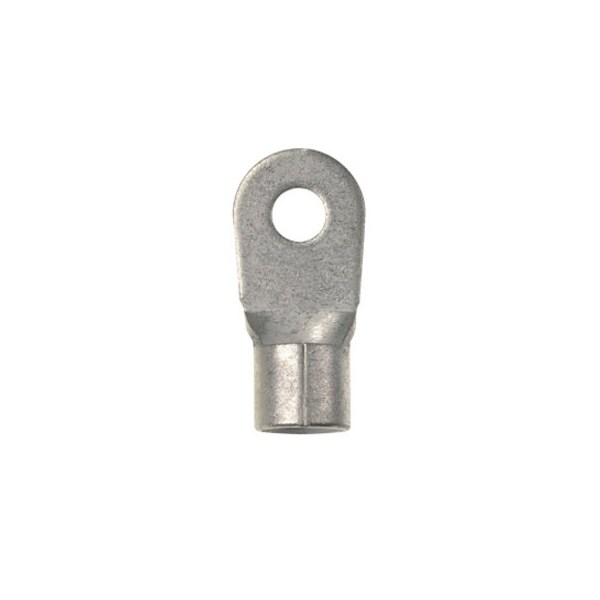

2 AWG Non-Insulated Ring Terminal 1/2" Stud PK10
| Wire Range | 2 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | 1/2" |
| Insulation Color | Bare |
| Item | Ring Terminal |
| Connection Material | Tin-Plated Copper |
| Max. Voltage | 2,000 V |
| Seam | Brazed |
| Max. Temp. | 302 deg F |
| Terminal Type | Ring Tongue |
| Barrel Inside Dia. | 0.37 in |
| Standards | UL Listed 587H E52164, CSA Certified LR31212 |
| Features | Brazed Seam |
| Overall Length | 1.55 in |
| Tongue Width - Wire Connector | 0.48 in |
| Length | 1.6 in |
| Finish | Tin-Plated |
| Width | 0.9 in |
| Product Type | Terminal Connector |
| Connector Details | 1 x (Ring Terminal) |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Product Material | Copper |
| Color Coding | Metallic |
| Max Operating Temperature | 150 degrees celsius |
| Product Class | Wire Termination |
| Outside Diameter Inches | 0.48 in |
| Package Quantity | 10 |
