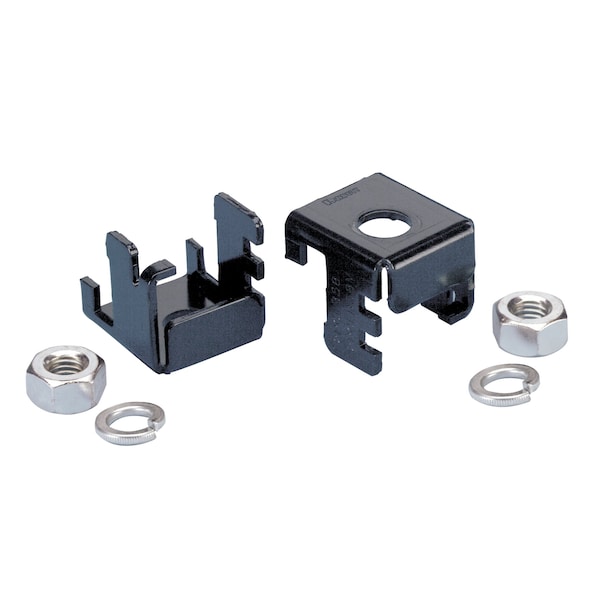

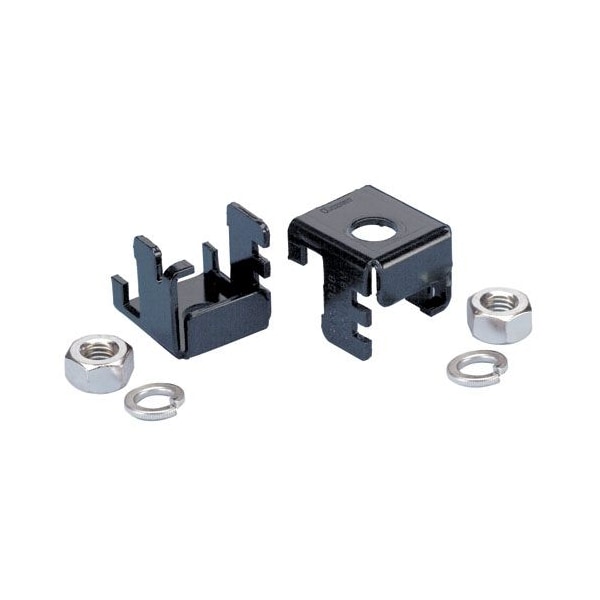

2 PC CLAMPING LADDER RACK, BRACKET FOR 5/8" THREADED ROD, ROHS
| Color | Black |
|---|---|
| Material | Steel |
| For Use With | Threaded Rod |
| Type | Cable Routing / Wiring Duct |
| Application | The 12X4 Routing System Shall be a System of Channel, Fittings, and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High Performance Copper Cabling. |
| Includes | (2) Bracket Clips, (2) 5/8" Helical Spring Lockwashers, (2) 1/2-11 Heavy Hex Nuts. |
| Overall Length (mm) | 42.2 |
| Overall Width (mm) | 45.8 |
| Compatible Threaded Rod Size (In.) | 0.63 |
| System Dimensions | 4x4, 6x4, 12x4 |
| Compatible Threaded Rod Size (mm) | 15.9 |
| Product Type | Brackets |
| Overall Length (In.) | 1.66 |
| Series Type | 12 x 4 FiberRunner Brackets |
| Number of Pieces | 2 |
| Overall Height (In.) | 1.7 |
| Overall Width (In.) | 1.8 |
| Overall Height (mm) | 43.2 |
| Angle | 90° |
| Package Contents | F2PCLB58 Mounting Bracket, Mounting Hardware |
| Product Color | Black |
| Device Supported | Cable Ladder |
| Product Name | F2PCLB58 Mounting Bracket |
| Components | Support Systems |
| Package Quantity | 1 |
