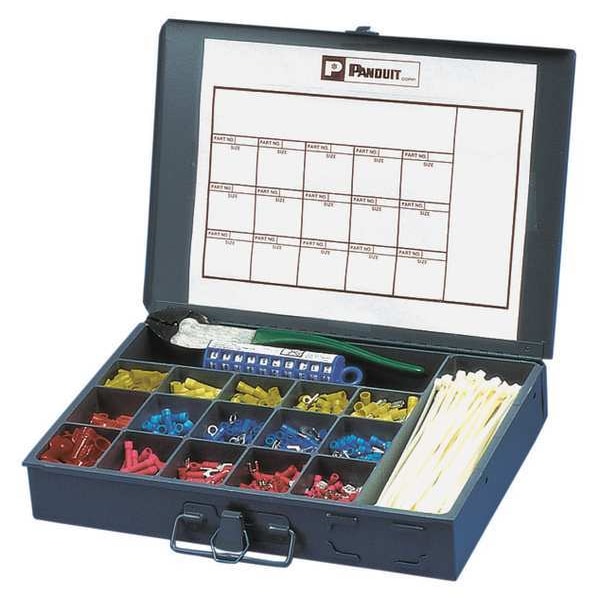

Kit de terminación de cable de 22-10 AWG con herramienta. Incluye 1177 piezas.
| Wire Range | 22 to 10 AWG |
|---|---|
| Insulation Color | Assortment |
| Description/Special Features | Wire In Maintenance and Construction Applications |
| Item | Wire Terminal Kit |
| Standards | UL Listed |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Terminal Type | Fork Terminals, Ring, Connectors, Female Quick Disconnects |
| Includes | (100) Cable Ties Terminals, (100) DNF18-250, (100) MP150 Marker Tags, (100) PN14-10R Ring Terminals, (100) PN14-610R, (100) PN18-6LF, (100) PN18-8F Fork Terminals, (25) BSN10 Butt Splices Marking System, (50) BSN18, (50) DV10-250 Disconnects Splices, (50) PN10-10LF Locking Fork Terminals, (50) PN10-10R Ring Terminals Disconnects, BSN14 Butt Splices, DNF14-250 Disconnects, Installation Tool Cable Ties, PMD-0-9 Marking Dispenser and Tape, PN14-8LF Locking Fork Terminals, PN18-610R Multi-Stud Terminals, PX-0 Marker, Steel Kit Box |
| Tools Included | Cable Ties, Crimping Tool, Marker, Marker Tags, Steel Kit Box |
| Number of Sizes | 14 |
| Connector Assortment Type | Crimp Terminals |
| Sizes Included | BSN10 to L Yellow, BSN14 to C Blue, BSN18 to C Red, DNF14 to 250 to C Blue, DNF18 to 250 to C Red, DV10 to 250 to L Yellow, PN10 to 10LF to L Yellow, PN10 to 10R to L Yellow, PN14 to 10R to C Blue, PN14 to 6R to C Blue, PN14 to 8LF to C Blue, PN18 to 10R to C Red, PN18 to 6LF to C Red, PN18 to 8F to C Red |
| Number of Pieces | 1,177 |
| Wire Type | Solid Copper, Stranded Copper |
| Overall Length | 9.33 in |
| Kit Type | Terminal |
| For Conductor Material | Copper |
| For Conductor Type | Solid Copper, Stranded Copper |
| Minimum Wire Size | 22 AWG |
| Special Features | Wire In Maintenance and Construction Applications |
| Maximum Wire Size | 14 AWG |
| Manufacture Model Numbers Included | BSN10, BSN14, BSN18, CT-260, DNF14-250, DNF18-250, DV10-250, K-1001, MP150, PLT2S, PMD-0-9, PN10-10LF, PN10-10R, PN14-10R, PN14-610R, PN14-8LF, PN18-610R, PN18-6LF, PN18-8F, PX-0 |
| Sub Brand | Pan-Term® |
| Overall Width (mm) | 338.6 |
| Product Type | Terminal Kit |
| Minimum Wire Size (AWG) | #22 |
| Overall Length (In.) | 9.33 |
| Overall Width (In.) | 13.33 |
| Overall Length (mm) | 237 |
| Maximum Wire Size (AWG) | #14 |
| Package Quantity | 1 |
