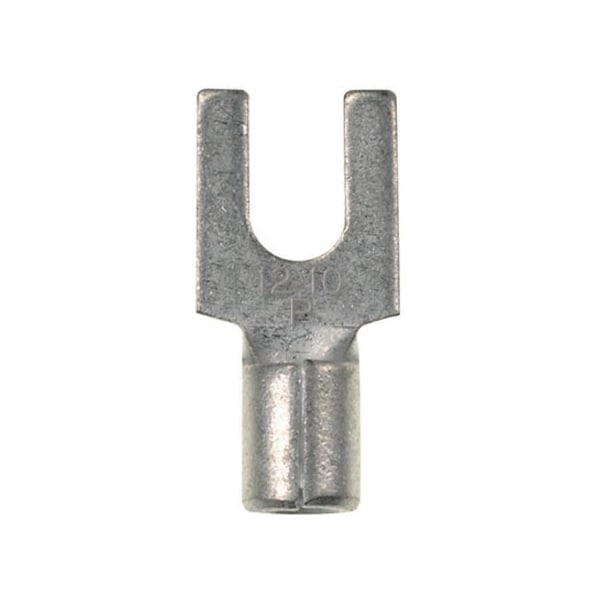

22-16 AWG Non-Insulated Fork Terminal #6 Stud PK100, Max. Voltage: 2000V
| Wire Range | 22 to 16 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #6 |
| Insulation Color | Bare |
| Item | Fork Terminal |
| Seam | Brazed |
| Max. Voltage | 2,000 V |
| Connection Material | Tin-Plated Copper |
| Features | Brazed Seam |
| Overall Length | 0.63 in |
| Max. Temp. | 302 deg F |
| Barrel Inside Dia. | 0.07 in |
| Standards | UL Listed 587H E52164; CSA Certified LR31212 |
| Terminal Type | Standard |
| Tongue Width - Wire Connector | 0.3 in |
| Length | 0.6 in |
| Finish | Tin-Plated |
| Width | 0.3 in |
| Product Type | Terminal Connector |
| Connector Details | 1 x (Fork Terminal) |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Product Material | Copper |
| Color Coding | Metallic |
| Max Operating Temperature | 150 degrees celsius |
| Product Class | Fork Terminals |
| Package Quantity | 100 |
