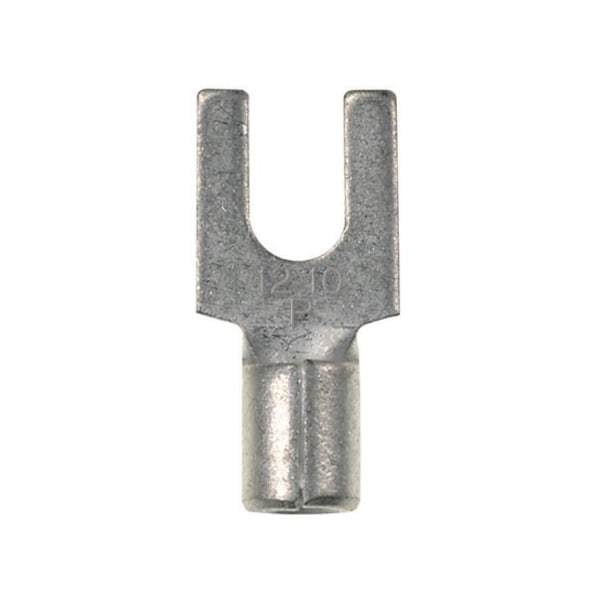

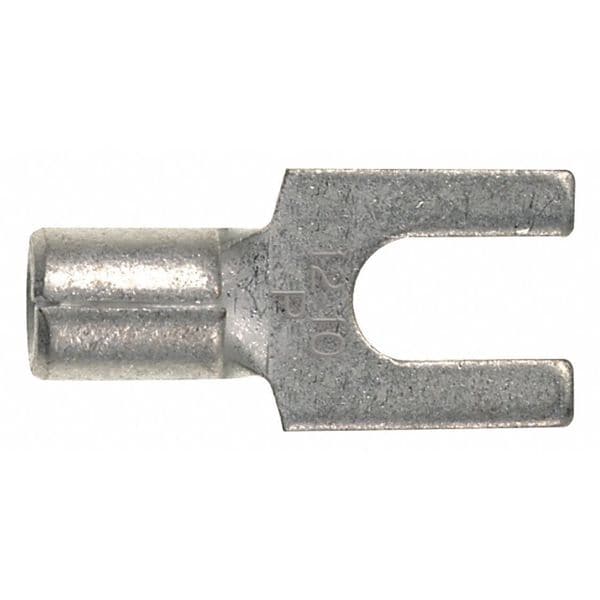

22-16 AWG Non-Insulated Fork Terminal #6 Stud PK1000
| Wire Range | 22 to 16 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #6 |
| Insulation Color | Bare |
| Item | Fork Terminal |
| Seam | Brazed |
| Max. Voltage | 2,000 V |
| Standards | CSA Certified, UL 587-H, UL Listed |
| Features | Barrel of Terminal Internally Beveled to Provide, Fork Design Provides for Fast and Easy Installation, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Without The Need to Remove Fastener |
| Terminal Type | Standard |
| Max. Temp. | 302 deg F |
| Tongue Width - Wire Connector | 0.28 in |
| Overall Length | 0.63 in |
| Connection Material | Copper |
| Terminal Connection | Crimp |
| Connection Type | Crimp |
| Tongue Length | 0.00 - 0.50 inches |
| Seam Style | Brazed |
| Compatible with Series | CT |
| Maximum Wire Size | 16 AWG |
| Tongue Width | 0.28 in |
| Insulation Material | None |
| Maximum Operating Temperature | 302 deg F |
| Compatible Manufacturer Model Number | CT-100A, CT-1570, CT-160, CT-200, CT-2500 (CT-2570CH), CT-260, CT-600-A (CT-570CH) |
| Insulation Coverage | None |
| Barrel Length | 1/4 in |
| Special Features | Barrel of Terminal Internally Beveled to Provide, Fork Design Provides for Fast and Easy Installation, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Tongue Thickness | 0.03 in |
| Strip Length | 1/4 in |
| Contact Material | Copper |
| Termination Style | Crimp |
| Terminal Shape | Fork |
| Contact Finish | Tin |
| Compatible with Product Type | Crimper, Crimp Tool, Wire Stripper |
| Maximum Voltage | 2,000 V |
| Minimum Wire Size | 22 AWG |
| Package Quantity | 1000 |
