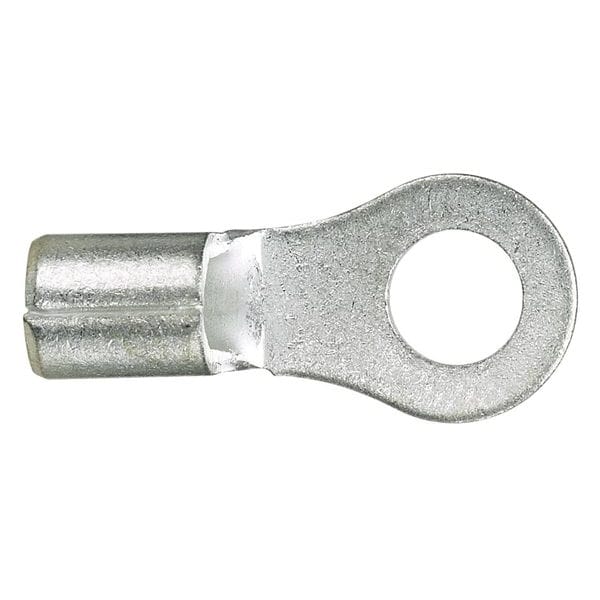

Terminal de anillo no aislado de calibre 22-16 para perno de tamaño #4, paquete de 1000 unidades.
| Wire Range | 22 to 16 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #4 |
| Insulation Color | Bare |
| Max. Voltage | 2,000 V |
| Seam | Brazed |
| Connection Material | Tin-Plated Copper |
| Item | Ring Terminal |
| Standards | UL Listed 587H E52164, CSA Certified LR31212 |
| Overall Length | 0.62 in |
| Features | Serrated Termination, Lead-free, Brazed Seam |
| Barrel Inside Dia. | 0.07 in |
| Terminal Type | Ring Tongue |
| Max. Temp. | 302 deg F |
| Tongue Width - Wire Connector | 1/4 in |
| Product Color | Metallic |
| Product Type | Terminal Connector |
| Product Name | Loose Piece Ring Terminal |
| Length | 0.6 in |
| Connector Plating | Tin |
| Connector Details | Ring Terminal |
| Width | 0.3 in |
| Product Series | P |
| Diameter | 0.1" |
| Finish | Tin-Plated |
| Outside Diameter Inches | 1/4 in |
| Max Operating Temperature | 150 degrees celsius |
| Color Coding | Silver |
| Product Class | Wire Termination |
| Barrel Type | Seam |
| Package Quantity | 1000 |
