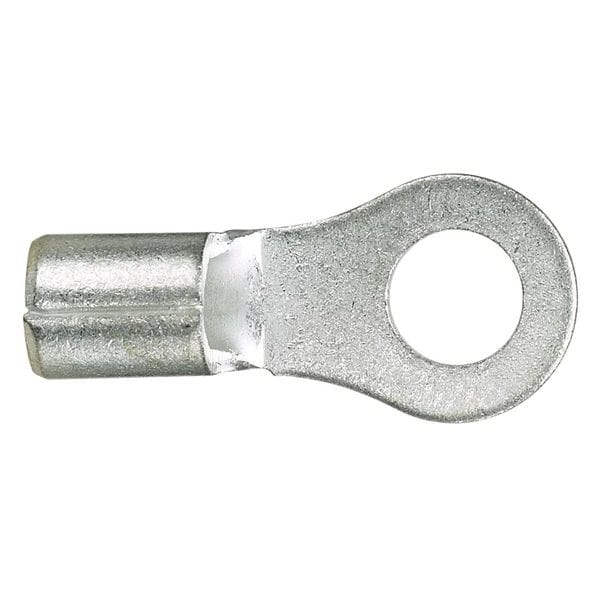

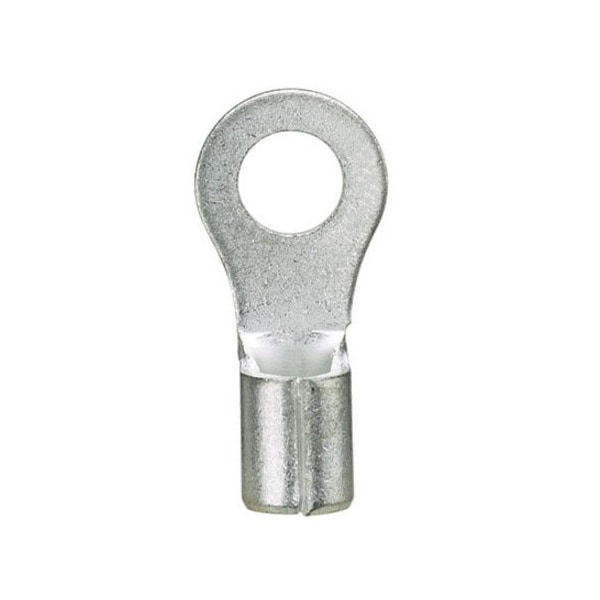

Terminal de anillo no aislado de calibre 22-16 con tornillo de calibre #6, paquete de 100 unidades.
| Wire Range | 22 to 16 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #6 |
| Insulation Color | Bare |
| Connection Type | Crimp |
| Green Environmental Attribute | Does Not Contain PVC |
| Max. Temp. | 302 deg F |
| Item | Ring Terminal |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B |
| Overall Length | 0.62 in |
| Tongue Width - Wire Connector | 0.62 in |
| Max. Voltage | 2,000 V |
| Seam | Brazed |
| Terminal Connection | Crimp |
| Connection Material | Copper |
| Features | Brazed Seam |
| Terminal Type | Ring Tongue |
| Barrel Inside Dia. | 0.07 in |
| For Use With | CT-100, CT-1570, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570) |
| Width | 0.3 in |
| Length | 0.6 in |
| Contact Material | Copper |
| Maximum Operating Temperature | 302 deg F |
| Minimum Wire Size | 22 AWG |
| Terminal Shape | Ring Terminal |
| Barrel Outside Diameter | 1/4 in |
| Strip Length | 1/4 in |
| Seam Style | Brazed |
| Compatible Manufacturer Model Number | CT-100, CT-100A, CT-1570, CT-160, CT-200, CT-2500, CT-260, CT-570, CT-600-A |
| Minimum Operating Temperature | 221 deg F |
| Termination Style | Crimp |
| Tongue Width | 1/4 in |
| Maximum Voltage | 2,000 V |
| Hole Diameter | 0.15 in |
| Barrel Style | Serrated Barrel |
| Insulation Coverage | None |
| Contact Finish | Tin |
| Barrel Length | 1/4 in |
| Maximum Wire Size | 16 AWG |
| Tongue Thickness | 0.03 in |
| Special Features | Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Insulation Material | None |
| Barrel Inside Diameter | 0.07 in |
| Product Name | Terminal Connector |
| Environmentally Friendly | Yes |
| Product Material | Copper |
| Connector Details | 1 x (Ring Terminal) |
| Product Type | Terminal Connector |
| Connector Type | Ring Terminal |
| Connector Plating | Tin |
| Tongue Width (In.) | 1/4 |
| Finish/Coating | Tin-Plated |
| Wire Strip Length (mm) | 7.1 |
| Inside Diameter (In.) | 0.07 |
| Packaging Type | Bottle |
| Stud Hole Size (In.) | #6 |
| Outer Diameter (mm) | 6.4 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Maximum Operating Temperature (°C) | 150 |
| Outer Diameter (In.) | 0.25 |
| Maximum Operating Temperature (°F) | 302 |
| Sub Brand | Pan-Term® |
| Overall Length (mm) | 15.7 |
| Tongue Thickness (mm) | 0.8 |
| Overall Width (mm) | 6.4 |
| Stud Hole Size (mm) | 3.5 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Minimum Wire Size (AWG) | #22 |
| Maximum Wire Size (AWG) | #18 |
| Wire Strip Length (In.) | 11,933 |
| Tongue Thickness (In.) | 0.03 |
| Barrel Type | Standard |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Voltage (V) | 2,000 |
| Inside Diameter (mm) | 1.8 |
| Overall Width (In.) | 1/4 |
| Seam Type | Brazed |
| Base Material | Copper |
| Tongue Width (mm) | 6.4 |
| Overall Length (In.) | 0.62 |
| Maximum Operating Temperature (°F) | 302 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Maximum Operating Temperature (°C) | 150 |
| Package Quantity | 100 |
