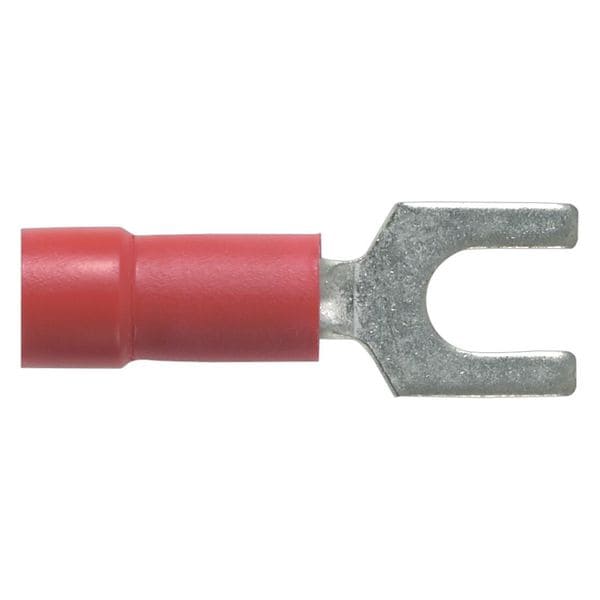

Terminal tipo horquilla de vinilo de calibre 22-16 para tornillo de #10, paquete con 100 piezas.
| Wire Range | 22 to 16 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #10 |
| Insulation Color | Red |
| Max. Voltage | 600 V |
| Max. Temp. | 221 deg F |
| Connection Material | Copper |
| Item | Fork Terminal |
| Overall Length | 0.93 in |
| Seam | Brazed |
| Tongue Width - Wire Connector | 0.35 in |
| Terminal Connection | Crimp |
| Standards | American Bureau of Shipping (ABS), CSA22.2 No. 65, UL 486A - 486B |
| Terminal Type | Standard |
| Features | Brazed Seam Protects Terminal Barrel From Splitting During Crimping Process, Fork Design Provides for Fast and Easy Installation, Insulation Support, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Connection Type | Crimp |
| Material | Copper, Vinyl |
| Length | 0.9 in |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Width | 0.4 in |
| Tongue Width | 0.35 in |
| Maximum Voltage | 600 V |
| Insulation Dia | 0.15 in |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Insulation Material | Vinyl |
| Product Material | Copper |
| Connector Details | 1 x (Fork Terminal) |
| Diameter | 0.2" |
| Environmentally Friendly | Yes |
| Connector Type | Fork Terminal |
| Product Color | Red |
| Product Type | Terminal Connector |
| Tongue Thickness (mm) | 0.8 |
| Tongue Thickness (In.) | 0.03 |
| Maximum Copper Conductor Size (AWG) | #16 |
| Color Code | Red |
| Maximum Wire Insulation Diameter (mm) | 3.8 |
| Sub Brand | Pan-Term® |
| Minimum Copper Conductor Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Minimum Wire Size (AWG) | #22 |
| Maximum Copper Conductor Size (AWG STR) | #16 |
| Overall Width (mm) | 8.9 |
| Overall Length (mm) | 23.6 |
| Overall Length (In.) | 0.93 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Tongue Width (mm) | 8.9 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Copper Conductor Size (AWG SOL) | #16 |
| Overall Width (In.) | 0.35 |
| Maximum Voltage (V) | 600 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Wire Insulation Diameter (In.) | 0.15 |
| Barrel Type | Funnel |
| Tongue Width (In.) | 0.35 |
| Maximum Voltage (kV) | 0.6 |
| Tongue Length (In.) | 0.47 |
| Finish/Coating | Tin-Plated |
| Seam Type | Brazed |
| Flammability Rating | UL94V-0 |
| Stud Hole Size (mm) | 5 |
| Wire Strip Length (In.) | 45,062 |
| Base Material | Copper |
| Barrel Length (In.) | 0.47 |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Hole Size (In.) | #10 |
| Fork Type | Standard |
| Maximum Wire Size (AWG) | #16 |
| Barrel Length (mm) | 11.8 |
| Note | PV18-10F-CY replaces PV18-10F-C |
| Wire Strip Length (mm) | 7.9 |
| Packaging Type | Bottle |
| Tongue Length (mm) | 11.8 |
| Seam Style | Brazed |
| Special Features | Brazed Seam Protects Terminal Barrel From Splitting During Crimping Process, Fork Design Provides for Fast and Easy Installation, Insulation Support, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Minimum Wire Size | 22 AWG |
| Maximum Wire Size | 16 AWG |
| Package Quantity | 100 |
