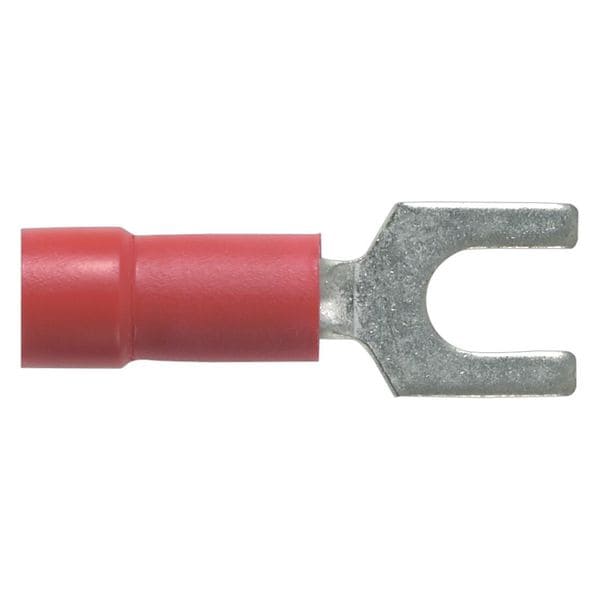

Terminal de horquilla de vinilo AWG 22-16, para perno #6, paquete de 100.
| Wire Range | 22 to 16 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #6 |
| Insulation Color | Red |
| Standards | American Bureau of Shipping (ABS), CSA22.2 No. 65, UL 486A - 486B |
| Features | Brazed Seam Protects Terminal Barrel From Splitting During Crimping Process, Fork Design Provides for Fast and Easy Installation, Insulation Support, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Terminal Connection | Crimp |
| Overall Length | 0.86 in |
| Max. Temp. | 221 deg F |
| Seam | Brazed |
| Item | Fork Terminal |
| Max. Voltage | 600 V |
| Connection Type | Crimp |
| Connection Material | Copper |
| Terminal Type | Standard |
| Tongue Width - Wire Connector | 0.3 in |
| Material | Copper, Vinyl |
| Length | 0.9 in |
| Width | 0.3 in |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Maximum Voltage | 600 V |
| Tongue Width | 0.3 in |
| Insulation Dia | 0.15 in |
| Product Color | Red |
| Product Name | Terminal Connector |
| Environmentally Friendly | Yes |
| Connector Type | Fork Terminal |
| Diameter | 0.2" |
| Connector Details | 1 x (Fork Terminal) |
| Product Type | Terminal Connector |
| Connector Plating | Tin |
| Insulation Material | Vinyl |
| Product Material | Copper |
| Wire Strip Length (mm) | 7.9 |
| Maximum Operating Temperature (°C) | 105 |
| Color Code | Red |
| Barrel Type | Funnel |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Maximum Voltage (kV) | 0.6 |
| Tongue Width (In.) | 0.3 |
| Barrel Length (In.) | 0.43 |
| Overall Length (In.) | 0.86 |
| Seam Type | Brazed |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Copper Conductor Size (AWG STR) | #16 |
| Fork Type | Standard |
| Minimum Copper Conductor Size (AWG) | #22 |
| Finish/Coating | Tin-Plated |
| Maximum Wire Insulation Diameter (In.) | 0.15 |
| Tongue Thickness (In.) | 0.03 |
| Maximum Copper Conductor Size (AWG) | #16 |
| Maximum Copper Conductor Size (AWG SOL) | #16 |
| Note | PV18-6F-CY replaces PV18-6F-C |
| Maximum Wire Size (AWG) | #16 |
| Base Material | Copper |
| Minimum Wire Size (AWG) | #22 |
| Packaging Type | Bottle |
| Maximum Wire Insulation Diameter (mm) | 3.8 |
| Overall Length (mm) | 21.8 |
| Stud Hole Size (mm) | 3.5 |
| Tongue Thickness (mm) | 0.8 |
| Maximum Voltage (V) | 600 |
| Wire Strip Length (In.) | 45,062 |
| Overall Width (mm) | 7.6 |
| Sub Brand | Pan-Term® |
| Tongue Width (mm) | 7.6 |
| Tongue Length (In.) | 0.43 |
| Flammability Rating | UL94V-0 |
| Stud Hole Size (In.) | #6 |
| Overall Width (In.) | 0.3 |
| Tongue Length (mm) | 10.9 |
| Barrel Length (mm) | 10.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Seam Style | Brazed |
| Maximum Wire Size | 16 AWG |
| Special Features | Brazed Seam Protects Terminal Barrel From Splitting During Crimping Process, Fork Design Provides for Fast and Easy Installation, Insulation Support, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Minimum Wire Size | 22 AWG |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Package Quantity | 100 |
