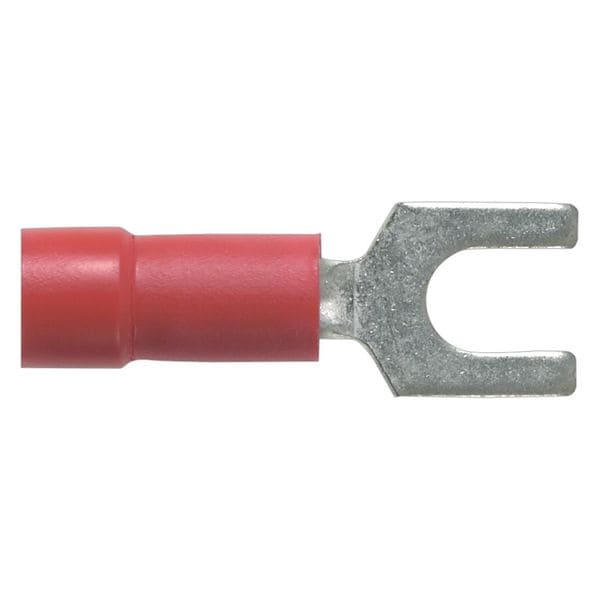

Terminal de horquilla de vinilo de calibre 22-16, con ojal de tamaño #8, paquete con 100 unidades.
| Wire Range | 22 to 16 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #8 |
| Insulation Color | Red |
| Terminal Connection | Crimp |
| Connection Type | Crimp |
| Connection Material | Copper |
| Standards | American Bureau of Shipping (ABS), CSA22.2 No. 65, UL 486A - 486B |
| Max. Voltage | 600 V |
| Overall Length | 0.93 in |
| Terminal Type | Standard |
| Tongue Width - Wire Connector | 0.32 in |
| Features | Brazed Seam Protects Terminal Barrel From Splitting During Crimping Process, Fork Design Provides for Fast and Easy Installation, Insulation Support, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Max. Temp. | 221 deg F |
| Seam | Brazed |
| Item | Fork Terminal |
| Width | 0.3 in |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Length | 0.9 in |
| Maximum Voltage | 600 V |
| Tongue Width | 0.32 in |
| Insulation Dia | 0.15 in |
| Insulation Material | Vinyl |
| Connector Details | 1 x (Fork Terminal) |
| Diameter | 0.2" |
| Product Color | Red |
| Connector Plating | Tin |
| Product Material | Vinyl |
| Product Name | Terminal Connector |
| Environmentally Friendly | Yes |
| Connector Type | Fork Terminal |
| Product Type | Terminal Connector |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Maximum Wire Insulation Diameter (mm) | 3.8 |
| Seam Type | Brazed |
| Maximum Wire Size (AWG) | #16 |
| Maximum Voltage (kV) | 0.6 |
| Tongue Length (mm) | 11.8 |
| Fork Type | Standard |
| Tongue Width (In.) | 0.32 |
| Stud Hole Size (In.) | #8 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Wire Size (AWG) | #22 |
| Maximum Voltage (V) | 600 |
| Barrel Type | Funnel |
| Base Material | Copper |
| Tongue Thickness (In.) | 0.03 |
| Overall Length (In.) | 0.93 |
| Maximum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Packaging Type | Bottle |
| Tongue Thickness (mm) | 0.8 |
| Sub Brand | Pan-Term® |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 45,062 |
| Wire Strip Length (mm) | 7.9 |
| Tongue Width (mm) | 8.1 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Tongue Length (In.) | 0.47 |
| Flammability Rating | UL94V-0 |
| Overall Length (mm) | 23.6 |
| Overall Width (mm) | 8.1 |
| Maximum Copper Conductor Size (AWG STR) | #16 |
| Overall Width (In.) | 0.32 |
| Note | PV18-8F-CY replaces PV18-8F-C |
| Maximum Copper Conductor Size (AWG) | #16 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Length (In.) | 0.47 |
| Barrel Length (mm) | 11.8 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Stud Hole Size (mm) | 4 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.15 |
| Minimum Wire Size | 22 AWG |
| Special Features | Brazed Seam Protects Terminal Barrel From Splitting During Crimping Process, Fork Design Provides for Fast and Easy Installation, Insulation Support, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Seam Style | Brazed |
| Maximum Wire Size | 16 AWG |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Package Quantity | 100 |
