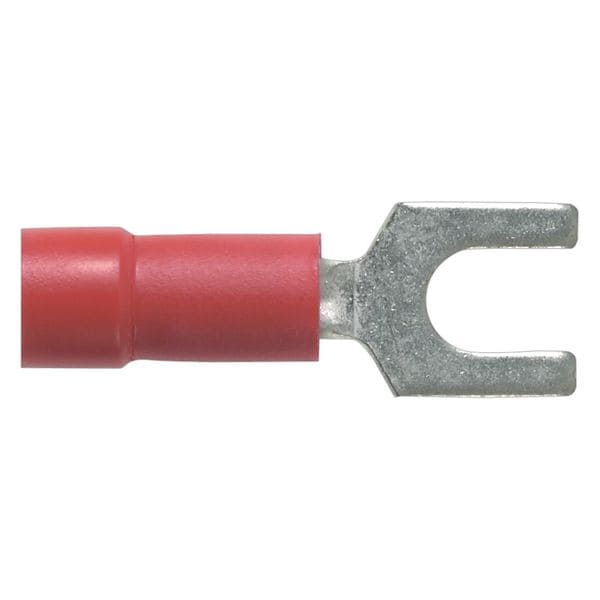

Terminal de horquilla de vinilo calibre 22-16 para tornillo #8, paquete con 1000 unidades.
| Wire Range | 22 to 16 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #8 |
| Insulation Color | Red |
| Overall Length | 0.93 in |
| Max. Voltage | 600 V |
| Terminal Connection | Crimp |
| Standards | American Bureau of Shipping (ABS), CSA22.2 No. 65, UL 486A - 486B |
| Max. Temp. | 221 deg F |
| Item | Fork Terminal |
| Seam | Brazed |
| Features | Brazed Seam Protects Terminal Barrel From Splitting During Crimping Process, Fork Design Provides for Fast and Easy Installation, Insulation Support, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Connection Type | Crimp |
| Terminal Type | Standard |
| Tongue Width - Wire Connector | 0.32 in |
| Connection Material | Copper |
| Material | Copper, Vinyl |
| Maximum Voltage | 600 V |
| Tongue Width | 0.32 in |
| Seam Style | Brazed |
| Special Features | Brazed Seam Protects Terminal Barrel From Splitting During Crimping Process, Fork Design Provides for Fast and Easy Installation, Insulation Support, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength |
| Maximum Wire Size | 16 AWG |
| Minimum Wire Size | 22 AWG |
| Package Quantity | 1000 |
