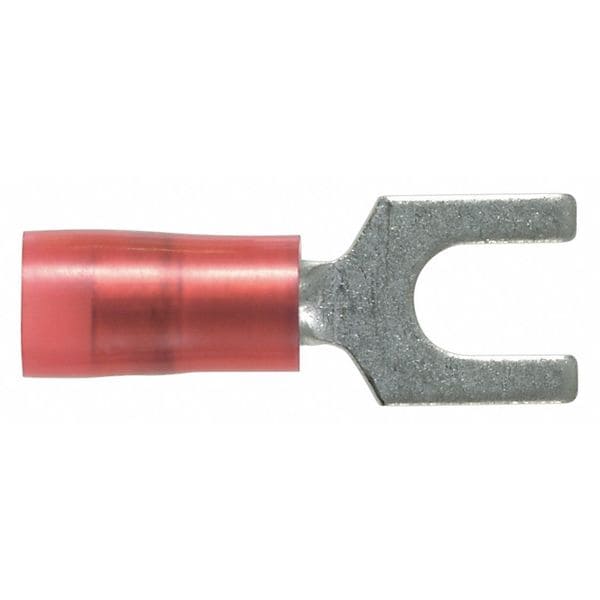

Terminal de horquilla de nylon de calibre 22-18 para perno #10, paquete con 100 piezas.
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #10 |
| Insulation Color | Red |
| Connection Type | Crimp |
| Tongue Width - Wire Connector | 0.35 in |
| Seam | Grip Sleeved |
| Features | Barrel of Terminal Internally Beveled to Provide, Fork Design Provides for Fast and Easy Installation, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Without The Need to Remove Fastener |
| Standards | CSA Certified, UL 587-H, UL Listed |
| Max. Voltage | 600 V |
| Connection Material | Copper |
| Overall Length | 0.86 in |
| Max. Temp. | 221 deg F |
| Item | Fork Terminal |
| Terminal Connection | Crimp |
| Terminal Type | Standard |
| Length | 0.9 in |
| Width | 0.4 in |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Maximum Voltage | 600 V |
| Barrel Style | Insulation Grip |
| Tongue Thickness | 0.03 in |
| Minimum Wire Size | 22 AWG |
| Compatible with Series | CT |
| Seam Style | Butted |
| Special Features | Fork Design Provides for Fast and Easy Installation Without the Need to Remove Fastener, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications |
| Insulation Material | Nylon |
| Strip Length | 1/4 in |
| Compatible with Product Type | Crimp Tool |
| Tongue Length | 0.00 - 0.50 inches |
| Barrel Length | 0.43 in |
| Compatible Manufacturer Model Number | CT-100, CT-160, CT-260 |
| Tongue Width | 0.35 in |
| Terminal Shape | Fork |
| Maximum Wire Size | 18 AWG |
| Maximum Operating Temperature | 221 deg F |
| Contact Material | Copper |
| Termination Style | Crimp |
| Insulation Dia | 0.145 in |
| Connector Type | Fork Terminal |
| Product Material | Nylon |
| Connector Details | 1 x (Fork Terminal) |
| Environmentally Friendly | Yes |
| Product Color | Red |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Diameter | 0.2" |
| Product Type | Terminal Connector |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Finish/Coating | Tin-Plated |
| Maximum Wire Insulation Diameter (mm) | 3.68 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Base Material | Copper |
| Tongue Thickness (mm) | 0.8 |
| Maximum Voltage (V) | 600 |
| Sub Brand | Pan-Term® |
| Wire Strip Length (In.) | 11,871 |
| Fork Type | Standard |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Overall Length (In.) | 0.86 |
| Overall Width (mm) | 8.9 |
| Maximum Wire Size (AWG) | #18 |
| Stud Hole Size (mm) | 5 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Maximum Operating Temperature (°F) | 221 |
| Wire Strip Length (mm) | 5.6 |
| Seam Type | Butted |
| Overall Width (In.) | 0.35 |
| Barrel Length (In.) | 0.43 |
| Packaging Type | Bottle |
| Barrel Type | Grip Sleeve |
| Maximum Voltage (kV) | 0.6 |
| Color Code | Red |
| Barrel Length (mm) | 10.9 |
| Maximum Wire Insulation Diameter (In.) | 0.145 |
| Minimum Wire Size (AWG) | #22 |
| Tongue Width (In.) | 0.35 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Overall Length (mm) | 21.8 |
| Maximum Operating Temperature (°C) | 105 |
| Tongue Length (In.) | 0.43 |
| Tongue Length (mm) | 10.9 |
| Stud Hole Size (In.) | #10 |
| Flammability Rating | UL94-HB |
| Tongue Thickness (In.) | 0.03 |
| Tongue Width (mm) | 8.9 |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Maximum Operating Temperature (°C) | 105 |
| Package Quantity | 100 |
