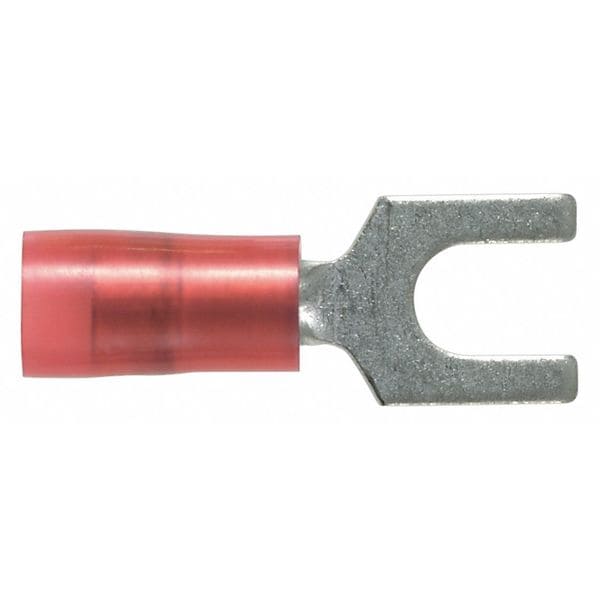

22-18 AWG Nylon Fork Terminal #6 Stud PK100
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #6 |
| Insulation Color | Red |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Terminal Connection | Crimp |
| Seam | Grip Sleeved |
| Tongue Width - Wire Connector | 0.3 in |
| Terminal Type | Standard |
| Connection Type | Crimp |
| Standards | CSA Certified, UL 587-H, UL Listed |
| Item | Fork Terminal |
| Overall Length | 0.78 in |
| Connection Material | Copper |
| Features | Barrel of Terminal Internally Beveled to Provide, Fork Design Provides for Fast and Easy Installation, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Without The Need to Remove Fastener |
| Length | 0.8 in |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Width | 0.3 in |
| Maximum Operating Temperature | 221 deg F |
| Contact Material | Copper |
| Tongue Length | 0.00 - 0.50 inches |
| Terminal Shape | Fork |
| Barrel Style | Insulation Grip |
| Compatible Manufacturer Model Number | CT-100, CT-160, CT-260 |
| Minimum Wire Size | 22 AWG |
| Maximum Wire Size | 18 AWG |
| Maximum Voltage | 600 V |
| Barrel Length | 0.39 in |
| Special Features | Fork Design Provides for Fast and Easy Installation Without the Need to Remove Fastener, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications |
| Insulation Material | Nylon |
| Compatible with Series | CT |
| Strip Length | 1/4 in |
| Termination Style | Crimp |
| Seam Style | Butted |
| Tongue Thickness | 0.03 in |
| Contact Finish | Tin |
| Compatible with Product Type | Crimp Tool |
| Tongue Width | 0.3 in |
| Insulation Dia | 0.145 in |
| Connector Details | 1 x (Fork Terminal) |
| Product Color | Red |
| Connector Type | Fork Terminal |
| Environmentally Friendly | Yes |
| Product Type | Terminal Connector |
| Product Material | Nylon |
| Diameter | 0.2" |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Color Code | Red |
| Overall Length (In.) | 0.78 |
| Overall Length (mm) | 19.8 |
| Packaging Type | Bottle |
| Tongue Thickness (mm) | 0.8 |
| Maximum Copper Conductor Size (AWG SOL) | #18 |
| Tongue Thickness (In.) | 0.03 |
| Sub Brand | Pan-Term® |
| Maximum Wire Size (AWG) | #18 |
| Flammability Rating | UL94-HB |
| Maximum Wire Insulation Diameter (In.) | 0.145 |
| Maximum Operating Temperature (°C) | 105 |
| Minimum Wire Size (AWG) | #22 |
| Wire Strip Length (mm) | 5.6 |
| Tongue Length (In.) | 0.39 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Stud Hole Size (In.) | #6 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Finish/Coating | Tin-Plated |
| Tongue Width (mm) | 7.6 |
| Overall Width (mm) | 7.6 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Overall Width (In.) | 0.3 |
| Maximum Voltage (kV) | 0.6 |
| Maximum Wire Insulation Diameter (mm) | 3.68 |
| Stud Hole Size (mm) | 3.5 |
| Tongue Width (In.) | 0.3 |
| Fork Type | Standard |
| Wire Strip Length (In.) | 11,871 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Maximum Voltage (V) | 600 |
| Base Material | Copper |
| Barrel Length (In.) | 0.39 |
| Barrel Type | Grip Sleeve |
| Tongue Length (mm) | 9.9 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Maximum Copper Conductor Size (AWG STR) | #18 |
| Barrel Length (mm) | 9.9 |
| Maximum Operating Temperature (°F) | 221 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Seam Type | Butted |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Package Quantity | 100 |
