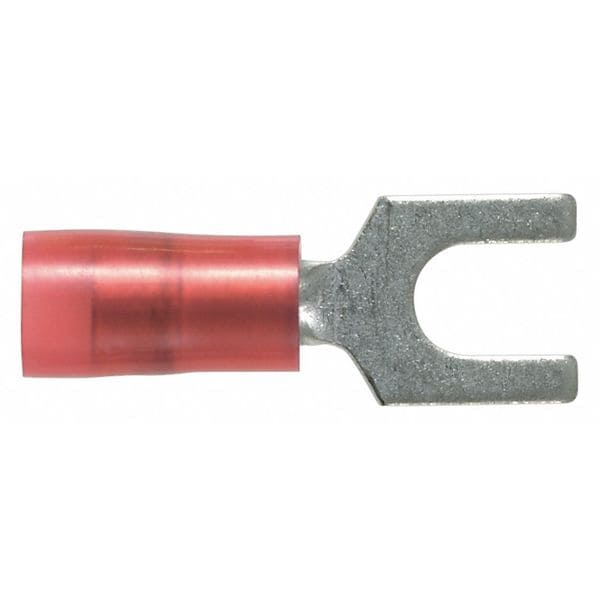

22-18 AWG Nylon Fork Terminal #6 Stud PK1000
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #6 |
| Insulation Color | Red |
| Item | Fork Terminal |
| Features | Barrel of Terminal Internally Beveled to Provide, Fork Design Provides for Fast and Easy Installation, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Without The Need to Remove Fastener |
| Standards | CSA Certified, UL 587-H, UL Listed |
| Tongue Width - Wire Connector | 1/4 in |
| Max. Voltage | 600 V |
| Overall Length | 0.78 in |
| Terminal Type | Standard |
| Max. Temp. | 221 deg F |
| Terminal Connection | Crimp |
| Connection Type | Crimp |
| Seam | Grip Sleeved |
| Connection Material | Copper |
| Compatible with Product Type | Crimp Tool |
| Strip Length | 1/4 in |
| Tongue Thickness | 0.03 in |
| Minimum Wire Size | 22 AWG |
| Tongue Width | 1/4 in |
| Maximum Voltage | 600 V |
| Maximum Operating Temperature | 221 deg F |
| Termination Style | Crimp |
| Special Features | Fork Design Provides for Fast and Easy Installation Without the Need to Remove Fastener, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications |
| Tongue Length | 0.00 - 0.50 inches |
| Terminal Shape | Fork |
| Barrel Length | 0.39 in |
| Maximum Wire Size | 18 AWG |
| Compatible Manufacturer Model Number | CT-100, CT-160, CT-260 |
| Contact Finish | Tin |
| Contact Material | Copper |
| Barrel Style | Insulation Grip |
| Seam Style | Butted |
| Compatible with Series | CT |
| Insulation Material | Nylon |
| Package Quantity | 1000 |
