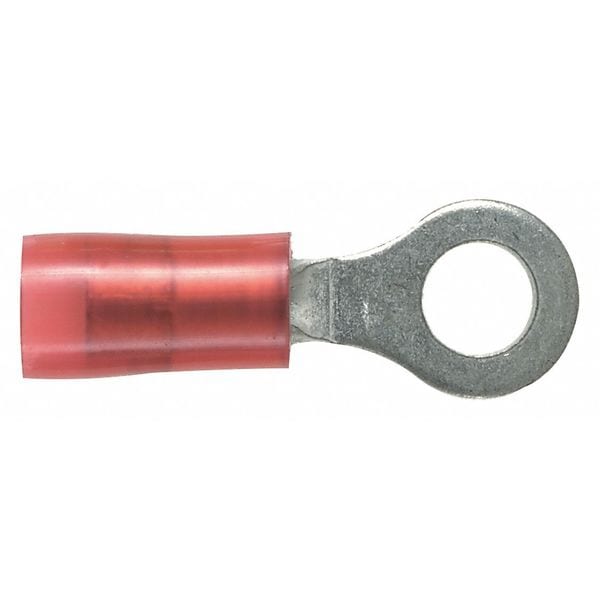

22-18 AWG Nylon Ring Terminal #10 Stud PK100
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #10 |
| Insulation Color | Red |
| Item | Ring Terminal |
| Max. Voltage | 600 V |
| Green Environmental Attribute | Does Not Contain PVC |
| Connection Type | Crimp |
| Tongue Width - Wire Connector | 0.31 in |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B |
| Overall Length | 0.87 in |
| Connection Material | Copper |
| Max. Temp. | 221 deg F |
| Seam | Grip Sleeved |
| Terminal Connection | Crimp |
| Terminal Type | Ring Tongue |
| Termination Style | Crimp |
| Insulation Coverage | Partial Coverage |
| Insulation Material | Nylon |
| Barrel Style | Insulation Grip |
| Compatible Manufacturer Model Number | CT-100, CT-1550, CT-1551, CT-2300/ST, CT-2500/L, UP14ZLW |
| Tongue Width | 0.31 in |
| Maximum Wire Size | 18 AWG |
| Barrel Inside Diameter | 0.15 in |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Contact Finish | Tin |
| Strip Length | 1/4 in |
| Minimum Operating Temperature | 221 deg F |
| Tongue Thickness | 0.03 in |
| Maximum Voltage | 600 V |
| UL 94 Flammability Rating | HB |
| Minimum Wire Size | 22 AWG |
| Maximum Operating Temperature | 221 deg F |
| Terminal Shape | Ring Terminal |
| Hole Diameter | 0.2 in |
| Contact Material | Copper |
| Seam Style | Grip Sleeved |
| Insulation Dia | 0.145 in |
| Maximum Operating Temperature (°F) | 221 |
| Tongue Thickness (In.) | 0.03 |
| Color Code | Red |
| Maximum Operating Temperature (°C) | 105 |
| Stud Hole Size (mm) | 5 |
| Overall Length (In.) | 0.87 |
| Maximum Wire Size (AWG) | #18 |
| Overall Width (In.) | 0.31 |
| Product Type | Ring Terminal |
| Minimum Wire Size (AWG) | #22 |
| Maximum Voltage (kV) | 0.6 |
| Sub Brand | Pan-Term® |
| Tongue Width (In.) | 0.31 |
| Maximum Voltage (V) | 600 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Flammability Rating | UL94-HB |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Insulation Diameter (mm) | 3.68 |
| Overall Length (mm) | 22.1 |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Barrel Type | Grip Sleeve |
| Base Material | Copper |
| Wire Strip Length (mm) | 5.6 |
| Wire Strip Length (In.) | 11,871 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Tongue Thickness (mm) | 0.8 |
| Maximum Wire Insulation Diameter (In.) | 0.145 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Finish/Coating | Tin-Plated |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-103) |
| Stud Hole Size (In.) | #10 |
| Overall Width (mm) | 7.9 |
| Packaging Type | Bottle |
| Tongue Width (mm) | 7.9 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Package Quantity | 100 |
