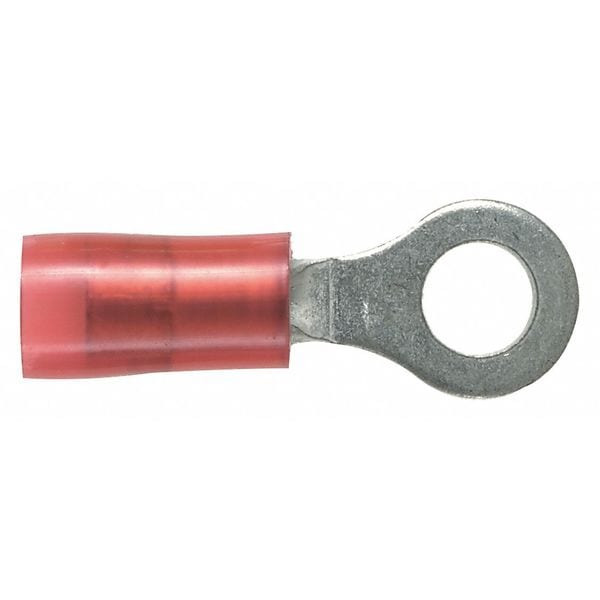

Terminal en forma de anillo de nylon para cable 22-18 AWG, con perno #10, paquete de 1000 unidades.
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #10 |
| Insulation Color | Red |
| Seam | Grip Sleeved |
| Green Environmental Attribute | Does Not Contain PVC |
| Terminal Connection | Crimp |
| Max. Temp. | 221 deg F |
| Tongue Width - Wire Connector | 0.31 in |
| Connection Type | Crimp |
| Standards | CSA Certified LR31212, UL Listed 587H E52164 |
| Overall Length | 0.87 in |
| Connection Material | Copper |
| Item | Ring Terminal |
| Max. Voltage | 600 V |
| Insulation Coverage | Partial Coverage |
| Maximum Operating Temperature | 221 deg F |
| Tongue Length | 0.44 in |
| Barrel Style | Insulation Grip |
| UL 94 Flammability Rating | HB, V-2 |
| Contact Material | Copper |
| Barrel Inside Diameter | 0.15 in |
| Insulation Material | Nylon |
| Termination Style | Crimp |
| Maximum Wire Size | 18 AWG |
| Seam Style | Grip Sleeved |
| Maximum Voltage | 600 V |
| Barrel Length | 1.43 in |
| Terminal Shape | Ring Terminal |
| Tongue Thickness | 0.03 in |
| Minimum Wire Size | 22 AWG |
| Hole Diameter | 0.2 in |
| Minimum Operating Temperature | 221 deg F |
| Contact Finish | Tin |
| Strip Length | 1/4 in |
| Tongue Width | 0.31 in |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Package Quantity | 1000 |
