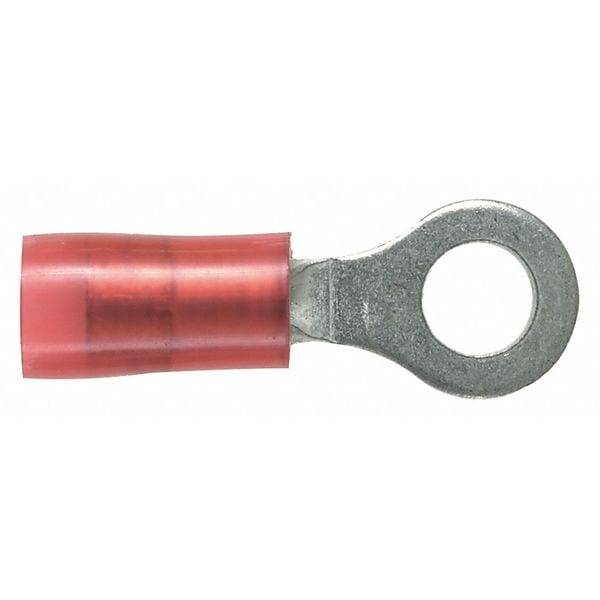

Terminal de anillo de nylon para cable de 22-18 AWG con perno de 1/4", paquete de 100 unidades.
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | 1/4 in |
| Insulation Color | Red |
| Item | Ring Terminal |
| Standards | CSA Certified LR31212, UL Listed 587H E52164 |
| Max. Temp. | 221 deg F |
| Tongue Width - Wire Connector | 0.45 in |
| Green Environmental Attribute | Does Not Contain PVC |
| Terminal Connection | Crimp |
| Seam | Grip Sleeved |
| Connection Type | Crimp |
| Max. Voltage | 600 V |
| Connection Material | Copper |
| Overall Length | 1.09 in |
| Terminal Type | Ring Tongue |
| Features | Flame Retardant |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Length | 1.1 in |
| Width | 0.4 in |
| Hole Diameter | 0.27 in |
| Minimum Wire Size | 22 AWG |
| Barrel Style | Insulation Grip |
| Contact Material | Copper |
| Compatible Manufacturer Model Number | CT-1550, CT-1551, CT-2500 W, CT-2550CH |
| Minimum Operating Temperature | 221 deg F |
| Barrel Inside Diameter | 0.15 in |
| Contact Finish | Tin |
| Termination Style | Crimp |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| UL 94 Flammability Rating | HB, V-2 |
| Barrel Length | 0.56 in |
| Tongue Width | 0.45 in |
| Insulation Coverage | Partial Coverage |
| Strip Length | 1/4 in |
| Maximum Operating Temperature | 221 deg F |
| Maximum Wire Size | 18 AWG |
| Seam Style | Grip Sleeved |
| Tongue Length | 0.53 in |
| Terminal Shape | Ring Terminal |
| Maximum Voltage | 600 V |
| Insulation Material | Nylon |
| Tongue Thickness | 0.03 in |
| Insulation Dia | 0.15 in |
| Connector Details | 1 x (Ring Terminal) |
| Product Material | Copper |
| Connector Type | Ring Terminal |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Product Color | Red |
| Environmentally Friendly | Yes |
| Product Type | Terminal Connector |
| Overall Length (mm) | 26.7 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Hole Size (In.) | 1/4" |
| Wire Strip Length (mm) | 5.6 |
| Flammability Rating | UL94V-2/UL94-HB |
| Insulation Diameter (mm) | 3.8 |
| Wire Strip Length (In.) | 11,871 |
| Overall Width (mm) | 11.4 |
| Base Material | Copper |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-150) |
| Finish/Coating | Tin-Plated |
| Sub Brand | Pan-Term® |
| Minimum Copper Conductor Size (AWG) | #22 |
| Overall Width (In.) | 0.45 |
| Maximum Voltage (kV) | 0.6 |
| Barrel Length (mm) | 13.5 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Overall Length (In.) | 1.05 |
| Minimum Wire Insulation Diameter (In.) | 0.15 |
| Packaging Type | Bottle |
| Barrel Length (In.) | 0.53 |
| Maximum Voltage (V) | 600 |
| Insulation Diameter (In.) | 0.15 |
| Barrel Type | Grip Sleeve |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Size (AWG) | #18 |
| Tongue Width (mm) | 11.4 |
| Tongue Thickness (In.) | 0.03 |
| Minimum Wire Size (AWG) | #22 |
| Maximum Wire Insulation Diameter (mm) | 3.8 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Tongue Thickness (mm) | 0.8 |
| Stud Hole Size (mm) | 6 |
| Color Code | Red |
| Maximum Operating Temperature (°C) | 105 |
| Tongue Length (mm) | 13.5 |
| Tongue Length (In.) | 0.53 |
| Maximum Wire Insulation Diameter (In.) | 0.15 |
| Minimum Wire Insulation Diameter (mm) | 3.8 |
| Tongue Width (In.) | 0.45 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Maximum Operating Temperature (°C) | 105 |
| Package Quantity | 100 |
