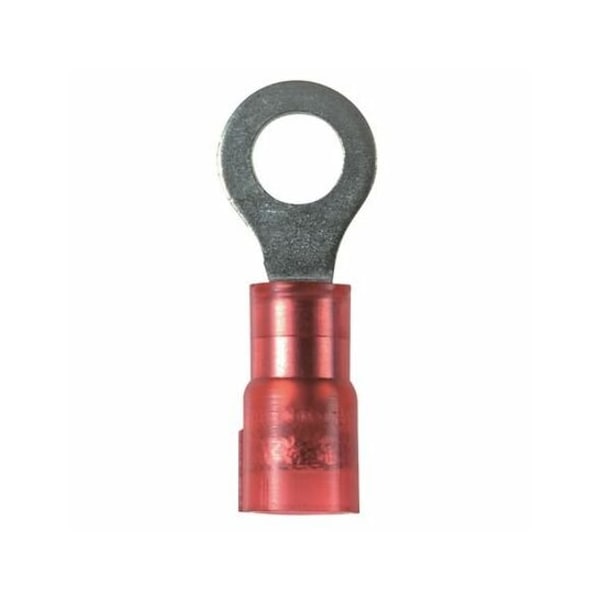

22-18 AWG Nylon Ring Terminal 1/4" Stud PK1000, Max. Voltage: 600V
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | 1/4" |
| Insulation Color | Red |
| Seam | Grip Sleeved |
| Connection Material | Tin-Plated Copper |
| Max. Voltage | 600 V |
| Item | Ring Terminal |
| Features | Flame Retardant |
| Terminal Type | Ring Tongue |
| Max. Temp. | 221 deg F |
| Overall Length | 1.06 in |
| Standards | UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-150) |
| Tongue Width - Wire Connector | 0.46 in |
| Length | 1.1 in |
| Width | 1/2 in |
| Finish | Tinned |
| Insulation Dia | 0.27 in |
| Product Material | Copper |
| Insulation Material | Nylon, Metal |
| Product Color | Red |
| Connector Details | 1 x (Ring Terminal) |
| Product Name | Terminal Connector |
| Product Type | Terminal Connector |
| Connector Plating | Tin |
| Color Coding | Red |
| Product Class | Wire Termination |
| Max Operating Temperature | 105 degrees celsius |
| Outside Diameter Inches | 0.38 in |
| Barrel Type | Insulation Grip Sleeve |
| Package Quantity | 1000 |
