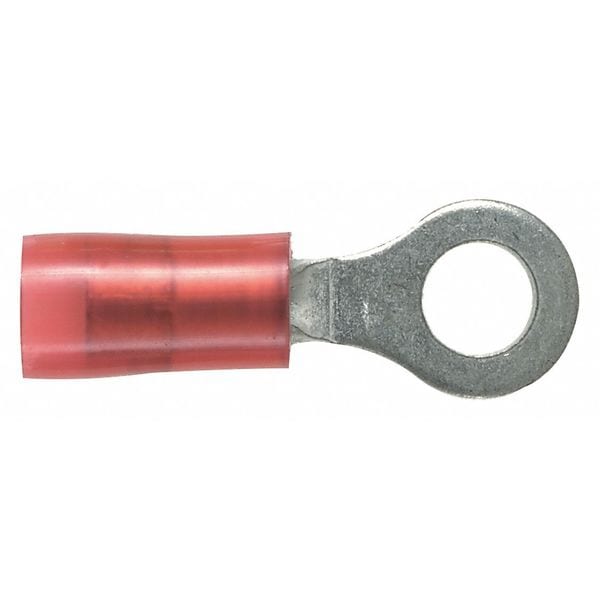

Terminal de anillo de nylon de calibre 22-18, para tornillo #6, paquete de 100 unidades.
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #6 |
| Insulation Color | Red |
| Max. Voltage | 600 V |
| Connection Material | Copper |
| Connection Type | Crimp |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B |
| Seam | Grip Sleeved |
| Item | Ring Terminal |
| Terminal Connection | Crimp |
| Overall Length | 0.79 in |
| Tongue Width - Wire Connector | 1/4 in |
| Max. Temp. | 221 deg F |
| Green Environmental Attribute | Does Not Contain PVC |
| Features | Flame Retardant |
| Terminal Type | Ring Tongue |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Length | 0.8 in |
| Width | 0.3 in |
| Insulation Material | Nylon |
| Barrel Style | Insulation Grip |
| Tongue Thickness | 0.03 in |
| Compatible Manufacturer Model Number | CT-100, CT-1550, CT-1551, CT-2300/ST, CT-2500/L, UP14ZLW |
| Maximum Voltage | 600 V |
| Minimum Operating Temperature | 221 deg F |
| Barrel Inside Diameter | 0.15 in |
| Maximum Operating Temperature | 221 deg F |
| Insulation Coverage | Partial Coverage |
| Contact Material | Copper |
| Maximum Wire Size | 18 AWG |
| Termination Style | Crimp |
| UL 94 Flammability Rating | HB |
| Terminal Shape | Ring Terminal |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Seam Style | Grip Sleeved |
| Hole Diameter | 0.15 in |
| Minimum Wire Size | 22 AWG |
| Strip Length | 1/4 in |
| Contact Finish | Tin |
| Tongue Width | 1/4 in |
| Insulation Dia | 0.145 in |
| Product Color | Red |
| Product Name | Terminal Connector |
| Connector Type | Ring Terminal |
| Connector Details | 1 x (Ring Terminal) |
| Environmentally Friendly | Yes |
| Product Material | Copper |
| Connector Plating | Tin |
| Product Type | Terminal Connector |
| Base Material | Copper |
| Wire Strip Length (In.) | 11,871 |
| Maximum Voltage (V) | 600 |
| Overall Width (mm) | 6.4 |
| Maximum Wire Insulation Diameter (mm) | 3.68 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-102) |
| Overall Length (In.) | 0.79 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Maximum Voltage (kV) | 0.6 |
| Tongue Thickness (In.) | 0.03 |
| Tongue Width (In.) | 1/4 |
| Packaging Type | Bottle |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Wire Size (AWG) | #18 |
| Stud Hole Size (In.) | #6 |
| Maximum Wire Insulation Diameter (In.) | 0.145 |
| Maximum Operating Temperature (°F) | 221 |
| Stud Hole Size (mm) | 3.5 |
| Finish/Coating | Tin-Plated |
| Tongue Thickness (mm) | 0.8 |
| Barrel Type | Grip Sleeve |
| Color Code | Red |
| Overall Width (In.) | 1/4 |
| Sub Brand | Pan-Term® |
| Overall Length (mm) | 20.1 |
| Wire Strip Length (mm) | 5.6 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Flammability Rating | UL94-HB |
| Tongue Width (mm) | 6.4 |
| Minimum Wire Size (AWG) | #22 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Package Quantity | 100 |
