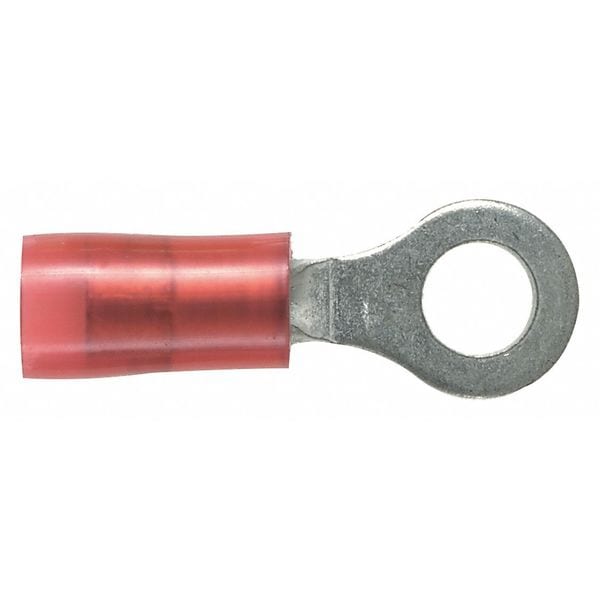

22-18 AWG Nylon Ring Terminal #6 Stud PK1000
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #6 |
| Insulation Color | Red |
| Connection Material | Copper |
| Tongue Width - Wire Connector | 1/4 in |
| Item | Ring Terminal |
| Seam | Grip Sleeved |
| Max. Voltage | 600 V |
| Terminal Connection | Crimp |
| Connection Type | Crimp |
| Green Environmental Attribute | Does Not Contain PVC |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B, UL Listed |
| Max. Temp. | 221 deg F |
| Overall Length | 0.79 in |
| Minimum Wire Size | 22 AWG |
| Strip Length | 1/4 in |
| Insulation Material | Nylon |
| Barrel Inside Diameter | 0.15 in |
| Maximum Voltage | 600 V |
| Maximum Wire Size | 18 AWG |
| Tongue Width | 1/4 in |
| Maximum Operating Temperature | 221 deg F |
| Minimum Operating Temperature | 221 deg F |
| Barrel Style | Insulation Grip |
| Contact Finish | Tin |
| Seam Style | Grip Sleeved |
| Insulation Coverage | Partial Coverage |
| Hole Diameter | 0.15 in |
| Contact Material | Copper |
| Terminal Shape | Ring Terminal |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| UL 94 Flammability Rating | HB |
| Termination Style | Crimp |
| Package Quantity | 1000 |
