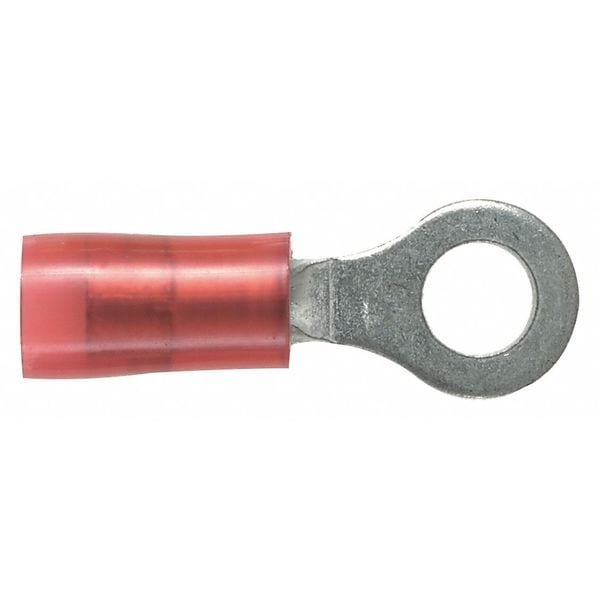

22-18 AWG Nylon Ring Terminal #8 Stud PK100
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #8 |
| Insulation Color | Red |
| Max. Voltage | 600 V |
| Overall Length | 0.85 in |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B |
| Terminal Connection | Crimp |
| Connection Material | Copper |
| Connection Type | Crimp |
| Max. Temp. | 221 deg F |
| Green Environmental Attribute | Does Not Contain PVC |
| Seam | Grip Sleeved |
| Tongue Width - Wire Connector | 0.31 in |
| Item | Ring Terminal |
| Terminal Type | Ring Tongue |
| Length | 0.9 in |
| Width | 0.3 in |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Compatible Manufacturer Model Number | CT-100, CT-1550, CT-1551, CT-2300/ST, CT-2500/L, UP14ZLW |
| Tongue Thickness | 0.03 in |
| Termination Style | Crimp |
| Barrel Inside Diameter | 0.15 in |
| UL 94 Flammability Rating | HB |
| Minimum Wire Size | 22 AWG |
| Maximum Wire Size | 18 AWG |
| Hole Diameter | 0.17 in |
| Maximum Voltage | 600 V |
| Barrel Style | Insulation Grip |
| Terminal Shape | Ring Terminal |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Tongue Width | 0.31 in |
| Strip Length | 1/4 in |
| Maximum Operating Temperature | 221 deg F |
| Insulation Material | Nylon |
| Minimum Operating Temperature | 221 deg F |
| Contact Material | Copper |
| Contact Finish | Tin |
| Insulation Coverage | Partial Coverage |
| Seam Style | Grip Sleeved |
| Insulation Dia | 0.145 in |
| Product Name | PN Terminal Connector |
| Connector Plating | Tin |
| Connector Details | 1 x (Ring Terminal) |
| Product Type | Terminal Connector |
| Product Series | PN |
| Product Color | Red |
| Product Material | Copper |
| Connector Type | Ring Terminal |
| Environmentally Friendly | Yes |
| Packaging Type | Bottle |
| Tongue Thickness (In.) | 0.03 |
| Color Code | Red |
| Flammability Rating | UL94-HB |
| Tongue Width (mm) | 7.9 |
| Tongue Thickness (mm) | 0.8 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Size (AWG) | #18 |
| Wire Strip Length (In.) | 11,871 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Sub Brand | Pan-Term® |
| Stud Hole Size (In.) | #8 |
| Overall Length (In.) | 0.85 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Tongue Width (In.) | 0.31 |
| Overall Width (mm) | 7.9 |
| Barrel Type | Grip Sleeve |
| Finish/Coating | Tin-Plated |
| Overall Length (mm) | 21.6 |
| Maximum Wire Insulation Diameter (mm) | 3.68 |
| Maximum Voltage (V) | 600 |
| Maximum Operating Temperature (°C) | 105 |
| Stud Hole Size (mm) | 4 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Minimum Wire Size (AWG) | #22 |
| Maximum Voltage (kV) | 0.6 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-149) |
| Base Material | Copper |
| Overall Width (In.) | 0.31 |
| Maximum Wire Insulation Diameter (In.) | 0.145 |
| Wire Strip Length (mm) | 5.6 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Package Quantity | 100 |
