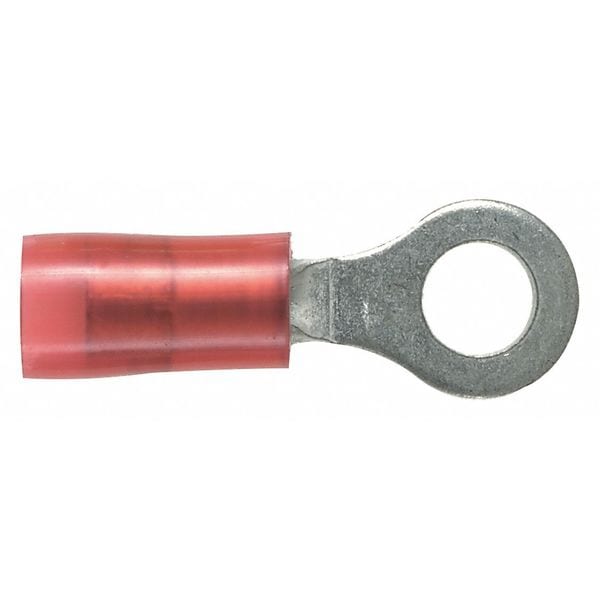

Terminal de anillo de nylon de calibre 22-18, para sujetar tornillo #8, paquete de 1000 unidades.
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #8 |
| Insulation Color | Red |
| Connection Type | Crimp |
| Connection Material | Copper |
| Overall Length | 0.85 in |
| Green Environmental Attribute | Does Not Contain PVC |
| Tongue Width - Wire Connector | 0.31 in |
| Max. Temp. | 221 deg F |
| Item | Ring Terminal |
| Terminal Connection | Crimp |
| Max. Voltage | 600 V |
| Seam | Grip Sleeved |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B |
| Hole Diameter | 0.17 in |
| Minimum Wire Size | 22 AWG |
| Insulation Material | Nylon |
| Insulation Coverage | Partial Coverage |
| Minimum Operating Temperature | 221 deg F |
| Maximum Operating Temperature | 221 deg F |
| Maximum Wire Size | 18 AWG |
| Barrel Inside Diameter | 0.15 in |
| Tongue Width | 0.31 in |
| Tongue Thickness | 0.03 in |
| Seam Style | Grip Sleeved |
| Maximum Voltage | 600 V |
| UL 94 Flammability Rating | HB |
| Termination Style | Crimp |
| Contact Finish | Tin |
| Strip Length | 1/4 in |
| Terminal Shape | Ring Terminal |
| Compatible Manufacturer Model Number | CT-100, CT-1550, CT-1551, CT-2300/ST, CT-2500/L, UP14ZLW |
| Barrel Style | Insulation Grip |
| Contact Material | Copper |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Package Quantity | 1000 |
