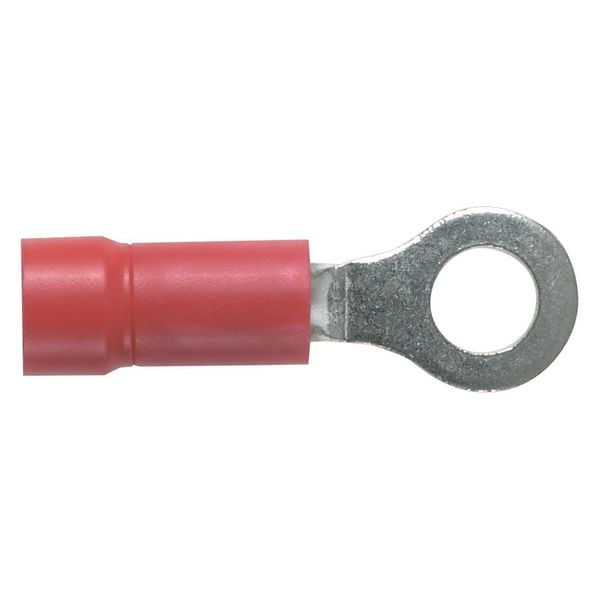

Terminal de anillo de vinilo de calibre 22-18, para perno #8, paquete de 1000 unidades.
| Wire Range | 22 AWG to 18 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #8 |
| Insulation Color | Red |
| Tongue Width - Wire Connector | 0.31 in |
| Standards | CSA C22.2 No. 65, UL486A-486B |
| Overall Length | 0.91 in |
| Seam | Brazed |
| Connection Material | Copper |
| Max. Voltage | 600 V |
| Item | Ring Terminal |
| Max. Temp. | 221 deg F |
| Maximum Voltage | 600 V |
| Contact Material | Copper |
| Maximum Wire Size | 18 AWG |
| Minimum Wire Size | 22 AWG |
| Tongue Width | 0.31 in |
| Seam Style | Brazed |
| Package Quantity | 1000 |
