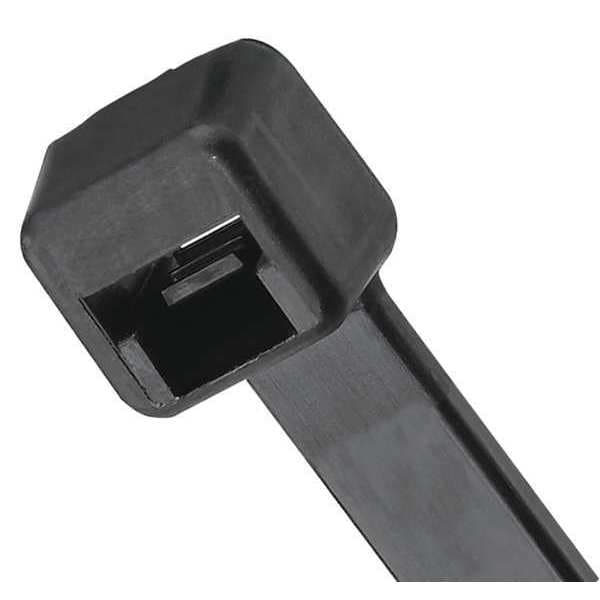

3-29/32" L, 3/32" W, Black Plastic Cable Tie, Package quantity: 1000
| Item | Cable Tie |
|---|---|
| Length | 3-29/32" |
| Width | 3/32 in |
| Max. Bundle Dia. | 0.87 in |
| Color | Black |
| Material | Nylon 6.6 |
| Tensile Strength | 18 lb |
| Indoor/Outdoor | Indoor |
| Thickness | 3/64 in |
| Basic Material | Nylon |
| Locking Style | Locking |
| Cable Tie Duty | Miniature |
| Design | One-Piece Locking Wedge |
| Standards | CSA Certified |
| Temp. Range | -60 to 100 deg C |
| Flame Retardant | Yes |
| Application | General Purpose |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Standards Met | CSA Certified, RoHS Compliant |
| Overall Length (In.) | 3.9 |
| Minimum Loop Tensile Strength (N) | 80 |
| Maximum Operating Temperature (°C) | 100 |
| Overall Length (mm) | 99 |
| Maximum Operating Temperature (°F) | 212 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Body Width (mm) | 2.5 |
| Minimum Installation Temperature (°F) | -4 |
| Body Thickness (In.) | 0.043 |
| Body Thickness (mm) | 1.1 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Operating Temperature (°C) | -60 |
| Maximum Bundle Diameter (mm) | 22.1 |
| Maximum Bundle Diameter (In.) | 0.87 |
| Environment | Indoor |
| Resistance Properties | Flame Retardant |
| Body Width (In.) | 0.098 |
| Product Type | Cable Tie |
| For Use With | GTS-E, GS2B-E, PTS |
| Cable Manager Type | Cable Tie |
| Product Line | Pan-Ty |
| Product Name | Pan-Ty PLT1M-M60 Cable Tie |
| Additional Information | Flame Retardant |
| Certifications & Standards | UL94V-0, CE |
| Product Series | PLT |
| Product Color | Black |
| Product Material | Nylon 6.6 |
| Min Operating Temperature | -60 degrees celsius |
| Overall Length | 3.9 in |
| Product Class | Management, Protection, Wire Routing |
| Package Quantity | 1000 |
