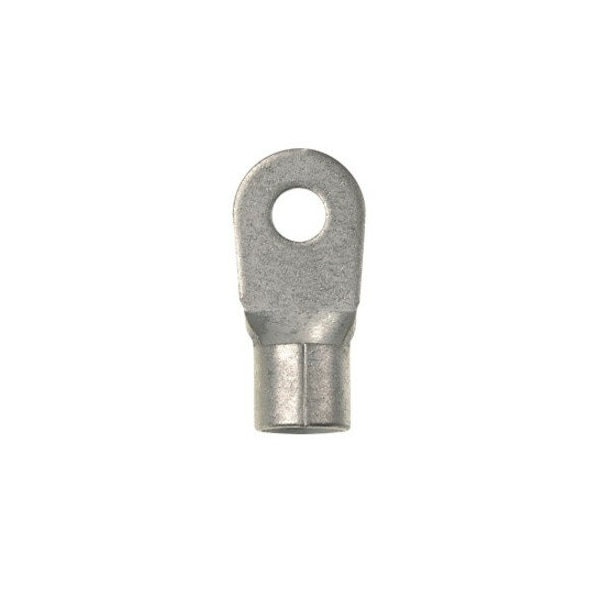

Terminal de anillo no aislado de 4 AWG con perno de 5/16 pulgadas, paquete de 20 unidades.
| Wire Range | 4 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | 5/16 in |
| Insulation Color | Bare |
| Max. Voltage | 2,000 V |
| Standards | CSA Certified LR31212, UL Listed 587H E52164 |
| Green Environmental Attribute | Does Not Contain PVC |
| Item | Ring Terminal |
| Seam | Brazed |
| Tongue Width - Wire Connector | 0.68 in |
| Connection Material | Copper |
| Max. Temp. | 302 deg F |
| Connection Type | Crimp |
| Overall Length | 1.46 in |
| Terminal Connection | Crimp |
| Barrel Inside Dia. | 0.29 in |
| Terminal Type | Ring Tongue |
| Width | 0.7 in |
| Length | 1-1/2 in |
| For Use With | CT-1701, CT-2600 (CD-2600-P4) |
| Strip Length | 1/2 in |
| Barrel Style | Serrated Barrel |
| Tongue Width | 0.68 in |
| Tongue Length | 1.12 in |
| Minimum Wire Size | 4 AWG |
| Hole Diameter | 0.33 in |
| Maximum Operating Temperature | 302 deg F |
| Termination Style | Crimp |
| Seam Style | Brazed |
| Special Features | Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Compatible Manufacturer Model Number | CT-1701, CT-2600, CT-2600-A |
| Insulation Coverage | None |
| Barrel Outside Diameter | 0.39 in |
| UL 94 Flammability Rating | Not Applicable |
| Barrel Inside Diameter | 0.29 in |
| Barrel Length | 0.56 in |
| Maximum Wire Size | 4 AWG |
| Tongue Thickness | 0.05 in |
| Contact Finish | Tin |
| Insulation Material | None |
| Minimum Operating Temperature | 302 deg F |
| Terminal Shape | Ring Terminal |
| Contact Material | Copper |
| Maximum Voltage | 2,000 V |
| Product Color | Metallic |
| Product Material | Copper |
| Connector Details | Terminal |
| Environmentally Friendly | Yes |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Package Type | Bulk |
| Product Type | Terminal Connector |
| Connector Type | Terminal |
| Tongue Thickness (In.) | 0.05 |
| Base Material | Copper |
| Tongue Thickness (mm) | 1.3 |
| Outer Diameter (In.) | 0.39 |
| Maximum Wire Size (AWG) | #4 |
| Stud Hole Size (mm) | 8 |
| Wire Strip Length (mm) | 12.7 |
| Tongue Width (In.) | 0.68 |
| Tongue Length (In.) | 1.12 |
| Minimum Copper Conductor Size (AWG) | #4 |
| Stud Hole Size (In.) | 5/16" |
| Wire Strip Length (In.) | 44,928 |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Wire Size (AWG) | #4 |
| Barrel Type | Standard |
| Inside Diameter (In.) | 0.29 |
| Overall Length (mm) | 37.1 |
| Tongue Length (mm) | 28.4 |
| Maximum Operating Temperature (°F) | 302 |
| Sub Brand | Pan-Term® |
| Inside Diameter (mm) | 7.4 |
| Maximum Voltage (V) | 2,000 |
| Packaging Type | Bottle |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Overall Length (In.) | 1.46 |
| Outer Diameter (mm) | 9.9 |
| Finish/Coating | Tin-Plated |
| Seam Type | Brazed |
| Maximum Copper Conductor Size (AWG) | #4 |
| Overall Width (mm) | 17.3 |
| Overall Width (In.) | 0.68 |
| Tongue Width (mm) | 17.3 |
| Maximum Operating Temperature (°F) | 302 |
| Maximum Operating Temperature (°C) | 150 |
| Package Quantity | 20 |
