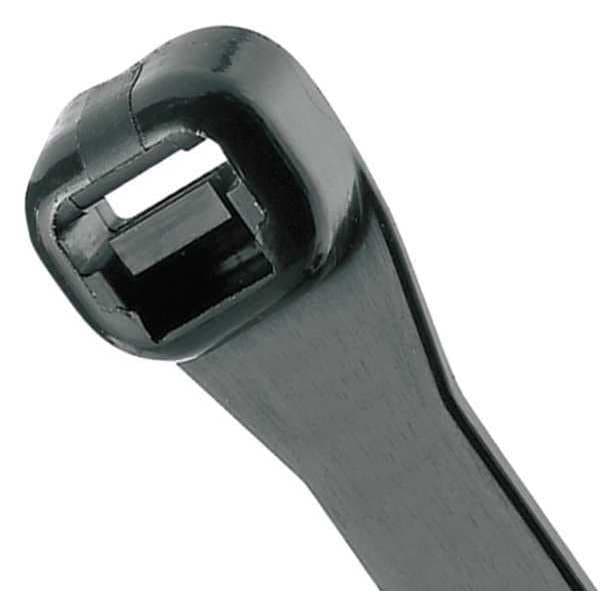

4.2" L Miniature Cable Tie BK PK 100
| Item | Cable Tie |
|---|---|
| Length | 4.2" |
| Width | 0.12 in |
| Max. Bundle Dia. | 0.9 in |
| Color | Black |
| Material | Nylon 6/6 |
| Tensile Strength | 18 lb |
| Indoor/Outdoor | Indoor, Outdoor |
| UL Type | 2 |
| Tensile Strength - Cable Tie | 18 lb |
| Width - Cable Tie | 0.12" |
| Locking Style | Plastic Pawl |
| Basic Material - Cable Tie | Nylon |
| Tool Code | E |
| Design - Cable Tie | Standard |
| Cable Tie Duty | Miniature |
| Resists | Weather, UV |
| Thickness | 0.03 in |
| Metal Detectable | No |
| Color - Cable Tie | Black |
| Basic Material | Nylon |
| Approximate Length - Cable Tie | 4 in |
| Temp. Range | -76 to 185 deg F |
| Design | Standard |
| Approximate Length | 4 in |
| Length - Cable Tie | 4.2 in |
| Standards | UL 62275 (Type 2, 21), CSA, CE, RoHS |
| Flame Retardant | No |
| Application | General Purpose |
| Cable Tie Style | Standard |
| Nominal Length | 4-1/2 in |
| Number of Straps | 1 |
| Recommended Tool | 376W68, 62PX63, Mfr. No. GTS, Mfr. No. GTSL, Mfr. No. PPTS, Mfr. No. PTS |
| Actual Length | 4.2 in |
| Outdoor Use | Yes |
| Min. Temp. Rating | -76 deg F |
| Plenum Rated | No |
| Max. Temp. Rating | 185 deg F |
| Nominal Max. Bundle Dia. | 1 in |
| Cable Tie Properties | Halogen-Free, Low-Smoke, UV Light Resistant, Weather Resistant |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
| Cable Manager Type | Cable Tie |
| Minimum Loop Tensile Strength | 18 lb |
| Environmentally Friendly | Yes |
| Product Material | Nylon 6.6 |
| Product Name | Cable Tie |
| Product Color | Black |
| Product Type | Cable Tying |
| Standards Met | CSA Certified, UL Listed (File #E56854), RoHS Compliant |
| Body Thickness (mm) | 0.97 |
| Body Width (In.) | 0.118 |
| Overall Length (In.) | 4.2 |
| Maximum Bundle Diameter (mm) | 22.9 |
| Body Thickness (In.) | 0.038 |
| Maximum Bundle Diameter (In.) | 0.9 |
| Minimum Installation Temperature (°C) | 70 |
| Resistance Properties | UV Resistant |
| Overall Length (mm) | 105.9 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Sub Brand | Super-Grip® |
| Body Width (mm) | 3 |
| Minimum Operating Temperature (°C) | -60 |
| Environment | Outdoor |
| Minimum Bundle Diameter (mm) | 0.8 |
| Minimum Installation Temperature (°F) | -40 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Bundle Diameter (In.) | 0.03 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Package Quantity | 100 |
