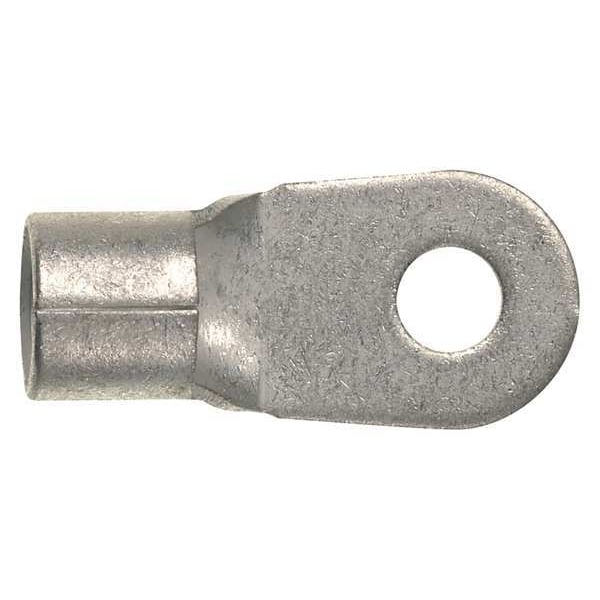

6 AWG Non-Insulated Ring Terminal #10 Stud PK200
| Wire Range | 6 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #10 |
| Insulation Color | Bare |
| Standards | CSA Certified LR31212, UL Listed 587H E52164 |
| Overall Length | 1.21 in |
| Max. Voltage | 2,000 V |
| Item | Ring Terminal |
| Max. Temp. | 302 deg F |
| Terminal Connection | Crimp |
| Tongue Width - Wire Connector | 0.47 in |
| Green Environmental Attribute | Does Not Contain PVC |
| Connection Material | Copper |
| Seam | Brazed |
| Connection Type | Crimp |
| Terminal Type | Ring Tongue |
| Features | Brazed Seam |
| Barrel Inside Dia. | 0.23 in |
| Length | 1.2 in |
| Width | 1/2 in |
| For Use With | CT-1701, CT-2600 (CD-2600-P6) |
| Barrel Inside Diameter | 0.23 in |
| Maximum Operating Temperature | 302 deg F |
| Barrel Style | Serrated Barrel |
| Maximum Wire Size | 6 AWG |
| Insulation Coverage | None |
| Minimum Wire Size | 6 AWG |
| Tongue Width | 0.47 in |
| Seam Style | Brazed |
| Barrel Outside Diameter | 0.23 in |
| Termination Style | Crimp |
| Barrel Length | 0.49 in |
| Contact Finish | Tin |
| Terminal Shape | Ring Terminal |
| Compatible Manufacturer Model Number | CT-1701, CT-2600 |
| Hole Diameter | 0.2 in |
| UL 94 Flammability Rating | Not Applicable |
| Tongue Thickness | 0.05 in |
| Strip Length | 1/2 in |
| Contact Material | Copper |
| Maximum Voltage | 2,000 V |
| Tongue Length | 0.97 in |
| Minimum Operating Temperature | 302 deg F |
| Special Features | Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Insulation Material | None |
| Product Type | Terminal Connector |
| Package Type | Bulk |
| Product Name | Terminal Connector |
| Environmentally Friendly | Yes |
| Product Material | Copper |
| Connector Plating | Tin |
| Connector Details | 1 x (Ring Terminal) |
| Connector Type | Ring Terminal |
| Barrel Type | Standard |
| Sub Brand | Pan-Term® |
| Tongue Length (In.) | 0.97 |
| Minimum Copper Conductor Size (AWG) | #6 |
| Overall Width (mm) | 11.9 |
| Wire Strip Length (In.) | 45,123 |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Copper Conductor Size (AWG) | #6 |
| Maximum Voltage (V) | 2,000 |
| Packaging Type | Box |
| Maximum Operating Temperature (°F) | 302 |
| Tongue Thickness (In.) | 0.05 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Tongue Length (mm) | 24.6 |
| Inside Diameter (In.) | 0.23 |
| Tongue Width (In.) | 0.47 |
| Overall Width (In.) | 0.47 |
| Outer Diameter (mm) | 8.1 |
| Stud Hole Size (In.) | #10 |
| Wire Strip Length (mm) | 11.1 |
| Base Material | Copper |
| Seam Type | Brazed |
| Minimum Wire Size (AWG) | #6 |
| Tongue Thickness (mm) | 1.1 |
| Tongue Width (mm) | 11.9 |
| Outer Diameter (In.) | 0.32 |
| Finish/Coating | Tin-Plated |
| Inside Diameter (mm) | 5.8 |
| Stud Hole Size (mm) | 5 |
| Overall Length (In.) | 1.21 |
| Maximum Wire Size (AWG) | #6 |
| Overall Length (mm) | 30.7 |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Package Quantity | 200 |
