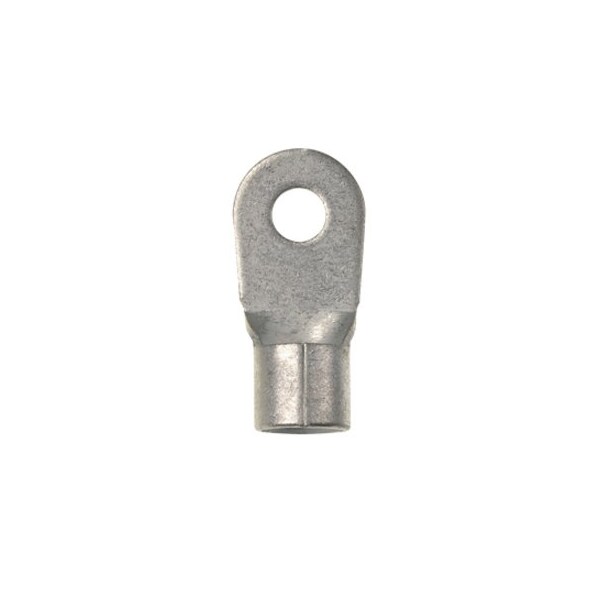

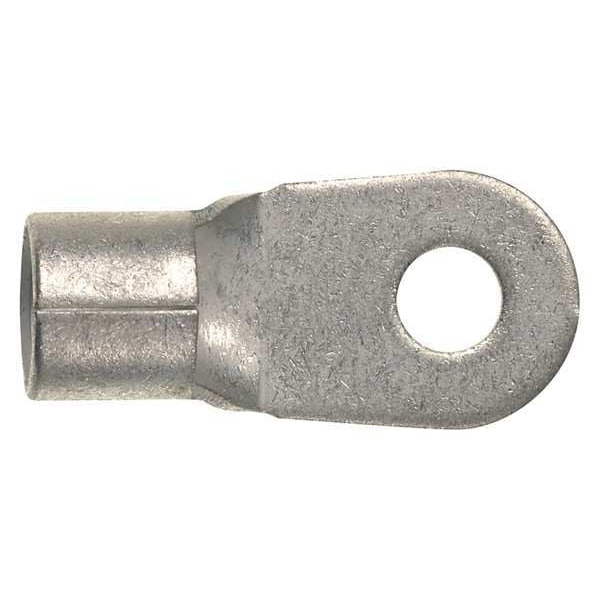

Terminal de anillo sin aislante de calibre 6 con tornillo de 3/8" paquete de 200.
| Wire Range | 6 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | 3/8 in |
| Insulation Color | Bare |
| Connection Material | Copper |
| Item | Ring Terminal |
| Terminal Connection | Crimp |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B |
| Connection Type | Crimp |
| Max. Voltage | 2,000 V |
| Max. Temp. | 302 deg F |
| Overall Length | 1.33 in |
| Green Environmental Attribute | Does Not Contain PVC |
| Tongue Width - Wire Connector | 0.62 in |
| Seam | Brazed |
| Contact Finish | Tin |
| Termination Style | Crimp |
| Strip Length | 1/2 in |
| Barrel Outside Diameter | 0.23 in |
| Maximum Voltage | 2,000 V |
| Minimum Wire Size | 6 AWG |
| Insulation Material | None |
| Barrel Inside Diameter | 0.23 in |
| Contact Material | Copper |
| Seam Style | Brazed |
| Compatible Manufacturer Model Number | CT-1701, CT-2600 |
| Insulation Coverage | None |
| Tongue Length | 1.02 in |
| Terminal Shape | Ring Terminal |
| Tongue Width | 0.62 in |
| Tongue Thickness | 0.05 in |
| Maximum Operating Temperature | 302 deg F |
| Barrel Length | 0.51 in |
| Barrel Style | Serrated Barrel |
| Special Features | Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Maximum Wire Size | 6 AWG |
| Hole Diameter | 0.39 in |
| Minimum Operating Temperature | 302 deg F |
| UL 94 Flammability Rating | Not Applicable |
| Package Quantity | 200 |
