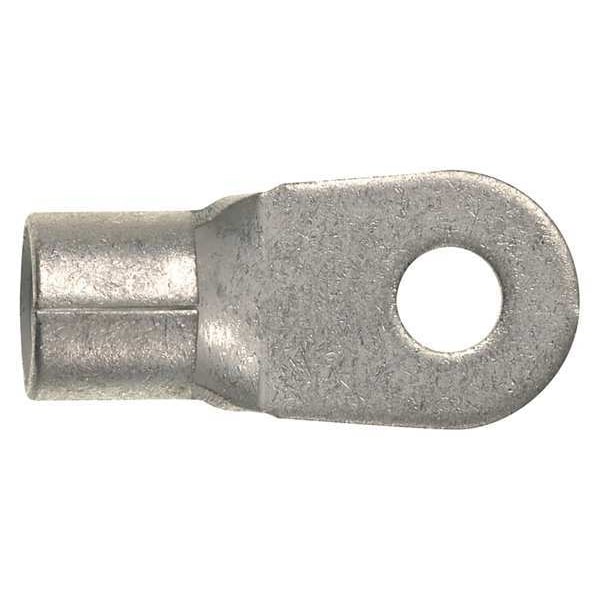

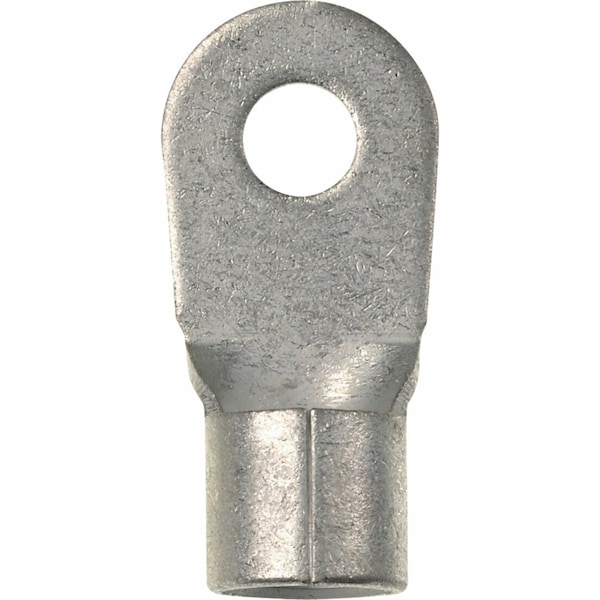

6 AWG Non-Insulated Ring Terminal 5/16" Stud PK200
| Wire Range | 6 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | 5/16 in |
| Insulation Color | Bare |
| Green Environmental Attribute | Does Not Contain PVC |
| Tongue Width - Wire Connector | 0.62 in |
| Seam | Brazed |
| Max. Voltage | 2,000 V |
| Max. Temp. | 302 deg F |
| Standards | CSA C22.2 No. 65, UL 486A, UL 486B |
| Terminal Connection | Crimp |
| Connection Material | Copper |
| Item | Ring Terminal |
| Overall Length | 1.33 in |
| Connection Type | Crimp |
| Terminal Type | Ring Tongue |
| Barrel Inside Dia. | 0.23 in |
| Length | 1.3 in |
| Width | 0.6 in |
| For Use With | CT-1701, CT-2600 (CD-2600-P6) |
| Maximum Voltage | 2,000 V |
| Compatible Manufacturer Model Number | CT-1701, CT-2600 |
| Minimum Wire Size | 6 AWG |
| Barrel Outside Diameter | 0.23 in |
| Special Features | Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Seam Style | Brazed |
| Tongue Width | 0.62 in |
| Barrel Style | Serrated Barrel |
| Minimum Operating Temperature | 302 deg F |
| Barrel Size | Standard |
| Tongue Thickness | 0.05 in |
| Barrel Inside Diameter | 0.23 in |
| Maximum Wire Size | 6 AWG |
| Contact Material | Copper |
| Contact Finish | Tin |
| Insulation Coverage | None |
| Strip Length | 1/2 in |
| Termination Style | Crimp |
| Hole Diameter | 0.33 in |
| Terminal Shape | Ring Terminal |
| Insulation Material | None |
| Maximum Operating Temperature | 302 deg F |
| Connector Type | Ring Terminal |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Product Series | P |
| Connector Details | 1 x (Ring Terminal) |
| Package Type | Bulk |
| Product Material | Copper |
| Product Type | Terminal Connector |
| Product Color | Metallic |
| Environmentally Friendly | Yes |
| Tongue Thickness (In.) | 0.045 |
| Overall Length (mm) | 33.8 |
| Seam Type | Brazed |
| Base Material | Copper |
| Stud Hole Size (In.) | 5/16" |
| Maximum Operating Temperature (°C) | 150 |
| Tongue Width (In.) | 0.62 |
| Barrel Type | Standard |
| Overall Length (In.) | 1.33 |
| Tongue Width (mm) | 15.7 |
| Minimum Wire Size (AWG) | #6 |
| Overall Width (mm) | 15.7 |
| Overall Width (In.) | 0.62 |
| Sub Brand | Pan-Term® |
| Tongue Thickness (mm) | 1.14 |
| Maximum Wire Size (AWG) | #6 |
| Maximum Copper Conductor Size (AWG) | #6 |
| Wire Strip Length (mm) | 11.1 |
| Wire Strip Length (In.) | 45,123 |
| Maximum Voltage (V) | 2,000 |
| Packaging Type | Box |
| Maximum Operating Temperature (°F) | 302 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212 |
| Stud Hole Size (mm) | 8 |
| Finish/Coating | Tin-Plated |
| Outer Diameter (In.) | 0.32 |
| Outer Diameter (mm) | 8.1 |
| Inside Diameter (In.) | 0.23 |
| Minimum Copper Conductor Size (AWG) | #6 |
| Inside Diameter (mm) | 5.8 |
| Maximum Operating Temperature (°F) | 302 |
| Maximum Operating Temperature (°C) | 150 |
| Package Quantity | 200 |
