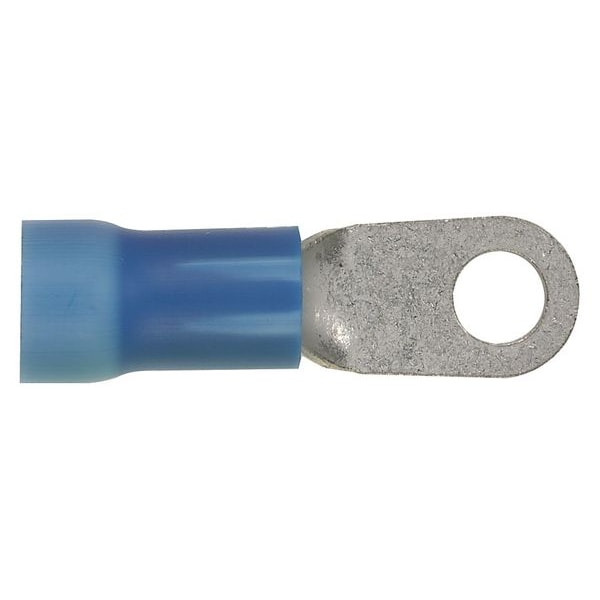

6 AWG Vinyl Ring Terminal #10 Stud PK10
| Wire Range | 6 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #10 |
| Insulation Color | Blue |
| Connection Material | Copper |
| Seam | Brazed |
| Item | Ring Terminal |
| Max. Temp. | 221 deg F |
| Standards | CSA C22.2 No. 65, UL486A-486B |
| Tongue Width - Wire Connector | 0.47 in |
| Overall Length | 1.62 in |
| Max. Voltage | 600 V |
| Terminal Type | Ring Tongue |
| Features | Insulated, Brazed Seam |
| Insulation Dia | 0.34 in |
| Product Series | PV |
| Product Color | Blue |
| Contact Plating | Tin |
| Insulation Material | Vinyl |
| Length | 1.6 in |
| Product Name | Terminal Connector |
| Contact Material | Copper |
| Product Type | Terminal Connector |
| Width | 1/2 in |
| Outside Diameter Inches | 0.34 in |
| Max Operating Temperature | 105 degrees celsius |
| Barrel Type | Funnel Entry |
| Product Class | Wire Termination |
| Color Coding | Blue |
| Finish | Tin-Plated |
| Package Quantity | 10 |
