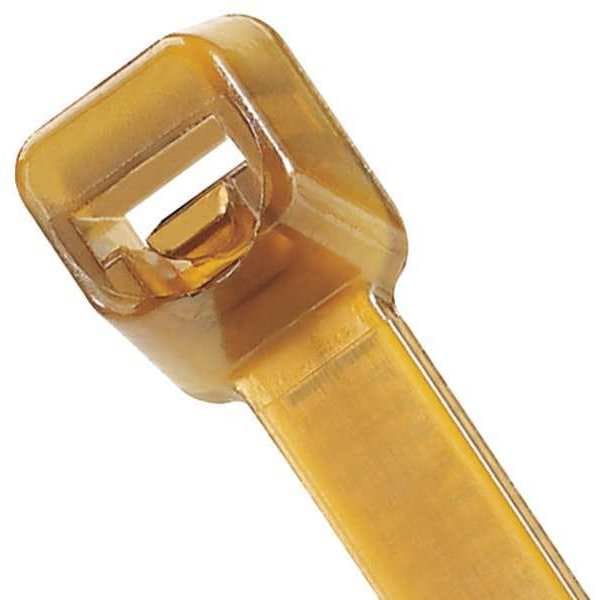

7.4" L Heavy Duty Cable Tie Brown PK 100
| Item | Cable Tie |
|---|---|
| Length | 7.4" |
| Width | 0.19 in |
| Max. Bundle Dia. | 1.88 in |
| Color | Brown |
| Material | PEEK |
| Tensile Strength | 150 lb |
| Indoor/Outdoor | Indoor |
| Design | Standard |
| Cable Tie Duty | Heavy Duty |
| Locking Style | Plastic Pawl |
| Temp. Range | -76 to 500 deg F |
| UL Type | 2 |
| Thickness | 0.05 in |
| Approximate Length | 7 in |
| Tool Code | E, F |
| Metal Detectable | No |
| Color - Cable Tie | Brown |
| Width - Cable Tie | 0.19" |
| Design - Cable Tie | Standard |
| Basic Material | Peek |
| Tensile Strength - Cable Tie | 150 lb |
| Standards | CE, RoHs |
| Length - Cable Tie | 7.4 in |
| Resists | Chemical, Radiation, High Temperatures |
| Basic Material - Cable Tie | Specialty |
| Approximate Length - Cable Tie | 7 in |
| Flame Retardant | Yes |
| Cable Tie Style | Standard |
| Nominal Length | 7-1/2 in |
| Plenum Rated | No |
| Nominal Max. Bundle Dia. | 2 in |
| Actual Length | 7.4 in |
| Recommended Tool | 376V35, 52ZJ96, 52ZJ97, Mfr. No. GS4H-E, Mfr. No. PTH, Mfr. No. PTS |
| Cable Tie Properties | Halogen-Free, Impact Resistant, Low-Smoke |
| Min. Temp. Rating | -76 deg F |
| Number of Straps | 1 |
| Max. Temp. Rating | 500 deg F |
| Outdoor Use | Yes |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2 |
| Cable Manager Type | Cable Tie |
| Product Type | Cable Tying |
| Product Material | Polyether Ether Ketone |
| Minimum Loop Tensile Strength | 50 lb |
| Product Name | Cable Tie |
| Product Color | Brown |
| Environmentally Friendly | Yes |
| Maximum Operating Temperature (°C) | 260 |
| Maximum Bundle Diameter (mm) | 48 |
| Body Thickness (mm) | 1.4 |
| Minimum Loop Tensile Strength (N) | 668 |
| Minimum Operating Temperature (°F) | -76 |
| Standards Met | RoHS Compliant |
| Minimum Bundle Diameter (mm) | 3.3 |
| Overall Length (In.) | 7.4 |
| Minimum Installation Temperature (°C) | -20 |
| Body Thickness (In.) | 0.055 |
| Body Width (In.) | 0.19 |
| Environment | Indoor |
| Minimum Loop Tensile Strength (lb) | 150 |
| Overall Length (mm) | 188 |
| Minimum Installation Temperature (°F) | -4 |
| Minimum Bundle Diameter (In.) | 0.13 |
| Minimum Operating Temperature (°C) | -60 |
| Maximum Operating Temperature (°F) | 500 |
| Body Width (mm) | 4.8 |
| Resistance Properties | Chemical, High Heat Resistant |
| Maximum Bundle Diameter (In.) | 1.88 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 260 |
| Minimum Installation Temperature (°F) | -4 |
| Maximum Operating Temperature (°F) | 500 |
| Minimum Operating Temperature (°C) | -60 |
| Package Quantity | 100 |
