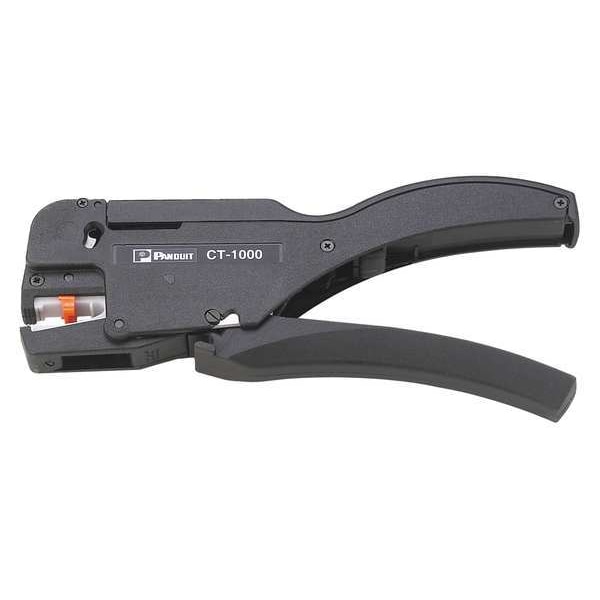

8 1/4 in Crimper 20 to 14 AWG
| Item | Crimper |
|---|---|
| Capacity | 20 to 14 AWG |
| Overall Length | 8-1/4 in |
| Handle Type | Curved |
| Insulated | Non-Insulated |
| Application | Cuts and Strips Wire |
| Features | Easy Top Loading of Strip Ferrules; Adjustment Knob to Set Ferrules Into Cross Section Slot; Easy Crimping of Ferrules on the Stripped Wire; Tool Spring Returned to Open Position After Crimping; Controlled Cycle Crimp Tool With Trapezoid Profile for #20 - 14 AWG (0.50 - 2.5mm2) Insulated Continuously Molded Ferrules on Strips |
| Max. Crimping Force | Not Rated |
| Primary Crimping Application | Electrical Wire and Cable |
| Adjustable | Semi-Automatic |
| Replacement Die Code | None |
| Cuts | Yes |
| Insulated / Uninsulated | Uninsulated |
| Strips | Yes |
| For Use With | Panduit Insulated Continuously Molded Ferrules On Strips |
| Depth | 1-1/4 in |
| Standards | CSA Certified, DIN, UL Listed |
| Includes | Die |
| Tool Length | 8-1/4 in |
| Tool Weight | 548.95 lb |
| Grip Style | None |
| Includes Crimping Die | Yes |
| Includes Wire Stripper | Yes |
| Compatible Connector Type | FSD-DSL Series Ferrules on Strip |
| Compatible Terminal Type | Crimp |
| Maximum Crimping Capacity | 14 AWG |
| Minimum Compatible Wire Size | 20 AWG |
| Maximum Compatible Wire Size | 14 AWG |
| Crimper Style | Crimper Tool |
| Includes Wire Cutter | Yes |
| Crimping Capacity | 14 AWG, 16 AWG, 18 AWG, 20 AWG |
| Jaw Opening Type | Spring Return |
| Adjustability | Semi-Automatic |
| Minimum Crimping Capacity | 20 AWG |
| Maximum Crimping Force | Not Rated |
| Body Material | Steel |
| Replacement Die Part Number | None |
| Package Quantity | 1 |
