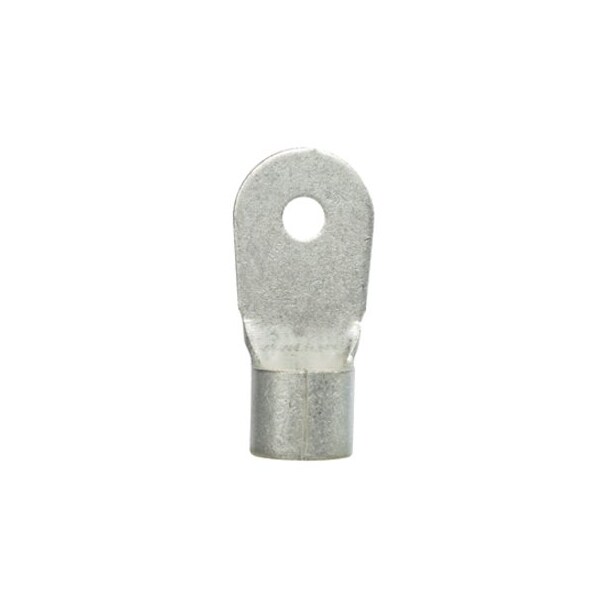

Terminal de anillo no aislado de calibre 8 para perno #10, paquete de 25 unidades.
| Wire Range | 8 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #10 |
| Insulation Color | Bare |
| Connection Material | Nickel-Plated Copper |
| Seam | Brazed |
| Item | Ring Terminal |
| Max. Voltage | 2,000 V |
| Max. Temp. | 650 deg F |
| Features | Brazed Seam |
| Overall Length | 1.14 in |
| Terminal Type | Ring Tongue |
| Barrel Inside Dia. | 0.19 in |
| Width | 0.4 in |
| Finish | Nickel-Plated |
| Length | 1.1 in |
| Tongue Width - Wire Connector | 0.42 in |
| Product Material | Copper |
| Connector Plating | Nickel |
| Product Type | Terminal Connector |
| Connector Details | 1 x (Ring Terminal) |
| Product Name | Terminal Connector |
| Max Operating Temperature | 343 degrees celsius |
| Product Class | Wire Termination |
| Color Coding | Metallic |
| Outside Diameter Inches | 0.27 in |
| Package Quantity | 25 |
