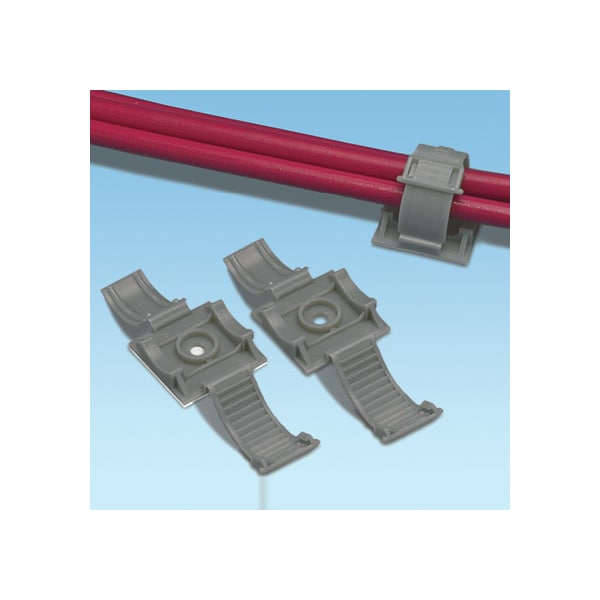

Adj. Rel. Clamp, #6 Screw (M3), .69" (17
| Color | Gray |
|---|---|
| Length | 1 in |
| Width | 1 in |
| Height | 0.41 in |
| Overall Length | 1 in |
| Material | Polypropylene |
| Application | For securing wires and cables via range-taking clamping ability |
| Overall Length (mm) | 25.4 |
| Maximum Operating Temperature (°F) | 149 |
| Static Load Capacity (lb) | 0.5 |
| Resistance Properties | Flame Resistance |
| Mounting Hole Diameter (mm) | 3.8 |
| Mounting Hole Diameter (In.) | 0.15 |
| Overall Width (In.) | 1 |
| Mount Method | Screw |
| Overall Height (mm) | 10.4 |
| Overall Height (In.) | 0.41 |
| Product Type | Adjustable and releasable clamp |
| Maximum Bundle Diameter (In.) | 0.68 |
| Minimum Operating Temperature (°F) | -76 |
| Overall Width (mm) | 25.4 |
| Environment | Indoor |
| Static Load Capacity (kg) | 0.2 |
| Overall Length (In.) | 1 |
| Maximum Bundle Diameter (mm) | 17.3 |
| Minimum Operating Temperature (°C) | -60 |
| Maximum Operating Temperature (°C) | 65 |
| Product Material | Polypropylene |
| Product Line | Clincher |
| Product Color | Gray |
| Product Name | ARC.68-S6-C14 Wire Clips - Screw Mount |
| Cable Manager Type | Cable Clip |
| Product Class | Cable & Conduit Supports |
| Package Quantity | 100 |
