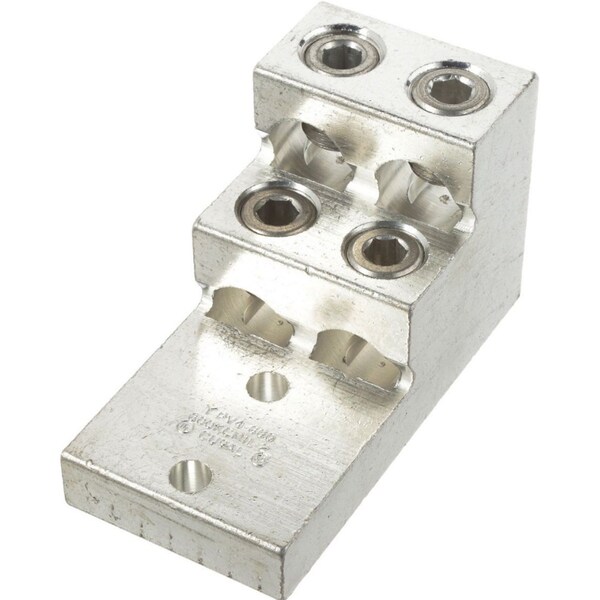

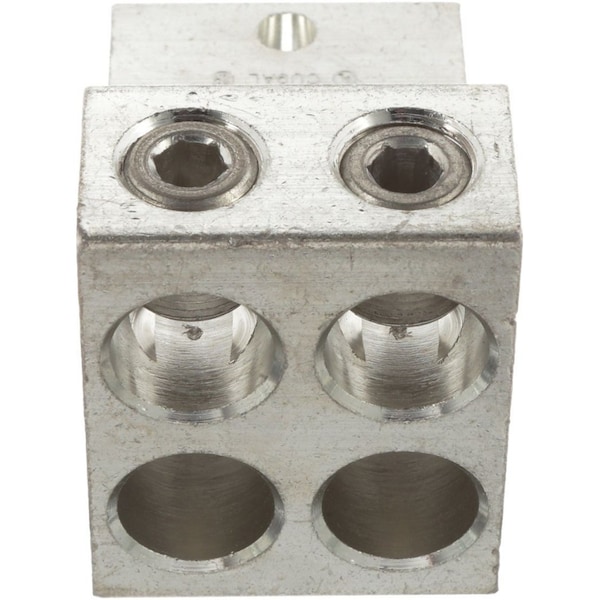

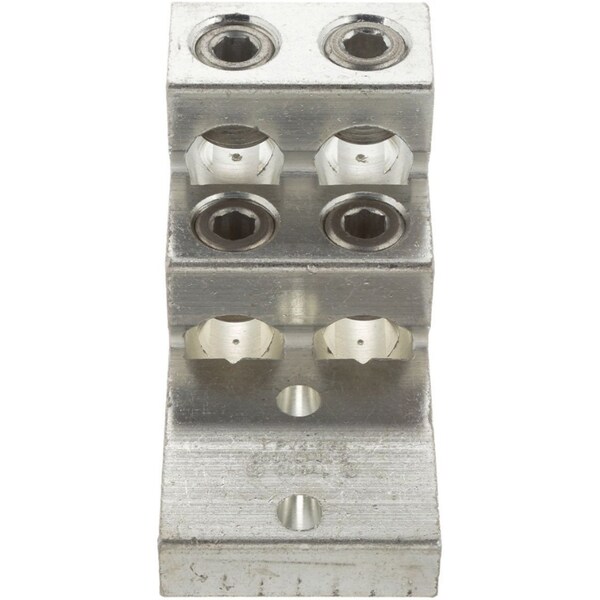

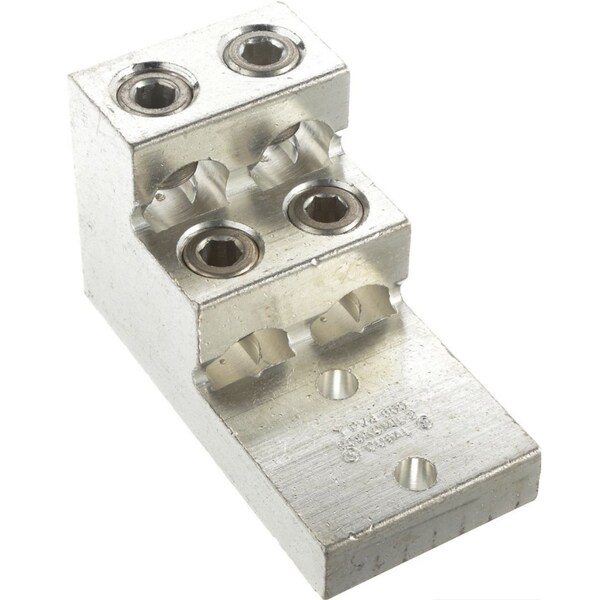

Enchufe de cable de 4 barriles, 2 Awg-600 Kcmil, espárrago de 3/8"
| Item | Al Lug,4brl,2 Awg-600 Kcmil,3/8" Stud |
|---|---|
| Height | 3 in |
| Overall Length | 4.91 in |
| Features | Halogen Free |
| Tongue Length (In.) | 2.34 |
| Maximum Voltage (V) | 35 |
| Tongue Width (mm) | 62.7 |
| Hex Size (mm) | 9.5 |
| Barrel Type | Four-Barrel |
| Stud Hole Size (mm) | 9.5 |
| Overall Height (In.) | 3 |
| Base Material | Aluminum |
| Stud Hole Spacing (mm) | 35.1 |
| Overall Length (mm) | 124.7 |
| Tongue Angle | Straight |
| Minimum Aluminum Conductor Size (AWG) | 2 |
| Tongue Length (mm) | 59.4 |
| Product Type | Mechanical Connectors, Hole, Vertical Barrel - Lugs |
| Minimum Copper Conductor Size (AWG STR) | 2 |
| Tongue Thickness (In.) | 0.75 |
| Stud Hole Spacing (In.) | 1.38 |
| Hex Size (In.) | 44,993 |
| UL Temperature Rating (°C) | 90 |
| Overall Height (mm) | 76.2 |
| Overall Length (In.) | 4.91 |
| Finish/Coating | Tin-Plated |
| Standards Met | UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90°C |
| Maximum Copper Conductor Size (AWG STR) | 600 |
| Maximum Aluminum Conductor Size (kcmil) | 600 |
| Number of Holes | 2 |
| Tongue Thickness (mm) | 19.1 |
| Stud Hole Size (In.) | 44,993 |
| Tongue Type | Straight Tongue |
| Tongue Width (In.) | 2.47 |
| Connector Details | 1 x Barrel Plug |
| Product Material | Copper, Aluminum |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Product Class | Lugs |
| Package Quantity | 1 |
