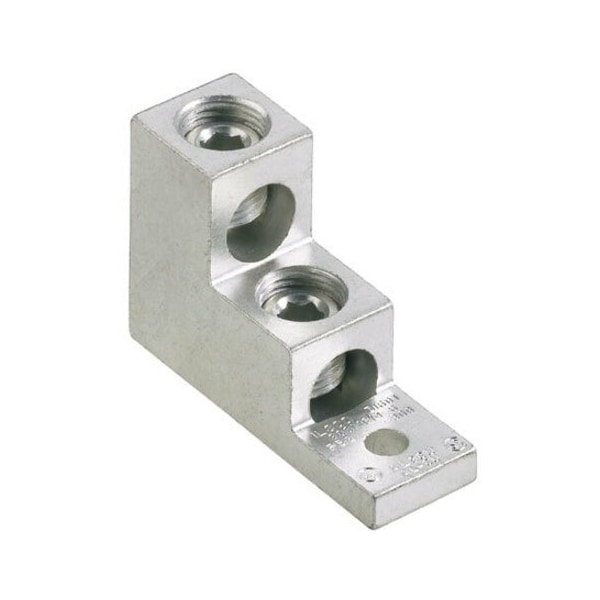

Al Lug, #6 Awg-300 Kcmil, 5/16" Stud
| Item | Al Lug,#6 Awg-300 Kcmil,5/16" Stud |
|---|---|
| Height | 2 in |
| Overall Length | 3 in |
| Application | Stranded Aluminum or Copper Code Conductor |
| Overall Length (In.) | 3 |
| Tongue Width (In.) | 1 |
| Overall Height (mm) | 50.8 |
| Tongue Width (mm) | 25.4 |
| Finish/Coating | Tin-Plated |
| Maximum Voltage (V) | 35 |
| Tongue Thickness (In.) | 0.5 |
| Product Type | Mechanical Connectors |
| Overall Height (In.) | 2 |
| UL Temperature Rating (°C) | 90 |
| Base Material | Aluminum |
| Standards Met | UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90°C |
| Tongue Type | Straight Tongue |
| Stud Hole Size (In.) | 45,062 |
| Tongue Length (In.) | 1 |
| Tongue Angle | Straight |
| Number of Holes | 1 |
| Overall Length (mm) | 76.2 |
| Connector Details | 1 x Barrel Plug |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Product Material | Copper, Aluminum |
| Product Class | Lugs |
| Package Quantity | 1 |
