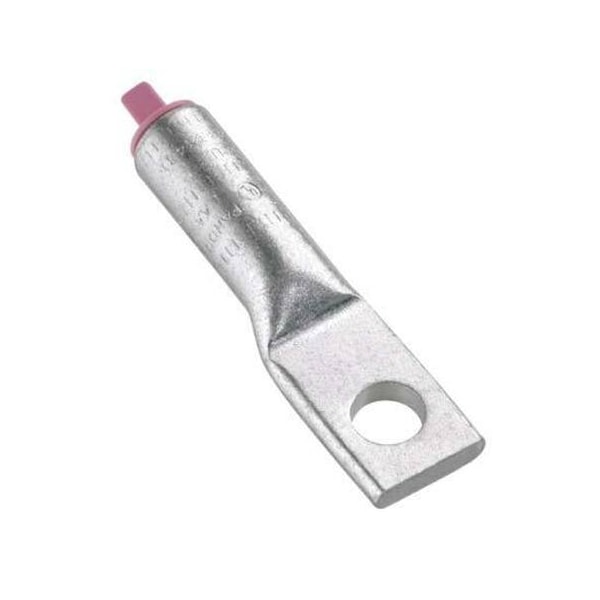

Terminal de compresión de aluminio, 1 agujero, calibre #1.
| Length | 1.8 in |
|---|---|
| Color Code | Gold |
| Overall Length | 2.63 in |
| Includes | Connector barrel pre-filled with oxide inhibiting joint compound |
| Features | Corrosion Resistant |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.17 |
| Overall Length (In.) | 2.63 |
| UL Temperature Rating (°C) | 90 |
| Finish/Coating | Tin-Plated |
| Wire Strip Length (mm) | 25.4 |
| Tongue Width (In.) | 3/4 |
| Overall Length (mm) | 66.8 |
| Aluminum Conductor Size (AWG) | 1 |
| Burndy Die Index Number | 471 |
| Tongue Width (mm) | 19.1 |
| Wire Strip Length (In.) | 1 |
| Base Material | Aluminum |
| Stud Hole Size (mm) | 9.5 |
| Tongue Type | Standard |
| Tongue Thickness (mm) | 4.3 |
| Stud Hole Size (In.) | 44,993 |
| Product Type | Aluminum Compression Lugs |
| Maximum Voltage (kV) | 35 |
| Copper Code Conductor Size (AWG) | 1 |
| Panduit Die Index Number | P45 |
| Barrel Length (In.) | 0.98 |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Product Material | Aluminum |
| Connector Details | 1 x Terminal |
| Product Class | Wire Termination |
| Package Quantity | 1 |
